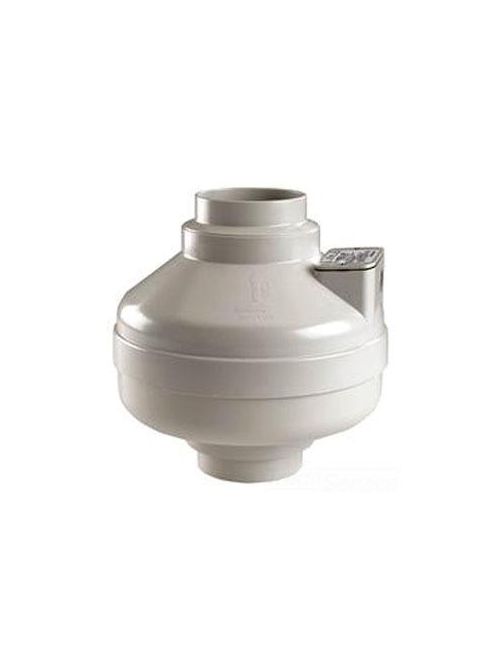

Broan ILRF 0.8 Amp 150 CFM 10 x 3-7/8 x 4-7/8 Inch Ventilation Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # ILRF
North Coast Part # 70681


  • Radon comes from the natural breakdown of uranium in soil, rock and water and gets into the air you breathe. The ILRF In-Line fan helps to remove radon in any type of building and can protect against health risks caused by radon, making your indoor environment safer
  • A totally enclosed motor with high-efficiency motorized impeller has automatic reset thermal overload protection for a long product life and reliable operation in high use environments
  • Permanently lubricated motor and high pressure centrifugal blower easily accommodates long duct runs and promotes flexibility in system design; housing mounts directly to bracket and bracket mounts to rafters or joist for a quick and simple installation so you can move on to the next project
  • UV-resistant durable polycarbonate plastic housing has an external rotor, ball bearing motor for many years of reliable service
  • Switches sold separately so you can choose the right one for your installation (suitable for use with solid state speed controls)


  • Bathrooms up to (X) Square Feet: 130
  • Ceiling Installation: Yes
  • CFM @ 0.10": 140
  • CFM @ 0.25": N/A
  • Color: N/A
  • CSA: No
  • cUL Listed: No
  • Duct Direction: Vertical
  • Duct Size: 5" or 4"
  • ENERGY STARĀ® certified product: No
  • ENERGY STARĀ® Most Efficient 2018: No
  • Globe Color: N/A
  • Grille Diameter: N/A
  • Grille Finish: N/A
  • Grille Length: N/A
  • Grille Width: N/A
  • Heater Wattage: N/A
  • Housing Dimension LxWxH: N/A
  • Housing Height: N/A
  • Housing Length: N/A
  • Housing Width: N/A
  • Humidity Sensing: No
  • HVI Certified: Yes
  • Light Bulb Quantity: N/A
  • Light Bulb Wattage: N/A
  • Light Bulbs Included: No
  • Lighting Type: No Light
  • Minimum construction space required: N/A
  • Motion Sensing: No
  • Motor engineered for continuous operation: No
  • Nightlight: No
  • Product Weight (Pounds): 5.6
  • Project Pack: No
  • Rated Amps: 0.7
  • Rated Sones: N/A
  • Rated Sones - Vertical: N/A
  • Rated Watts: N/A
  • Sones 6" to 4" reducer: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Wall Installation: No
  • Warranty: 1 Year
  • Watts @ 0.1": N/A
  • Watts @ 0.1" (Max CFM): N/A
  • Watts @ 0.25": N/A


UPC 78489120690
Item Long Description Radon fan is designed as a powerful, quiet and long-lasting radon mitigation solution.
GTiN 00784891206900
Family Brand Name BROAN-NUTONE
