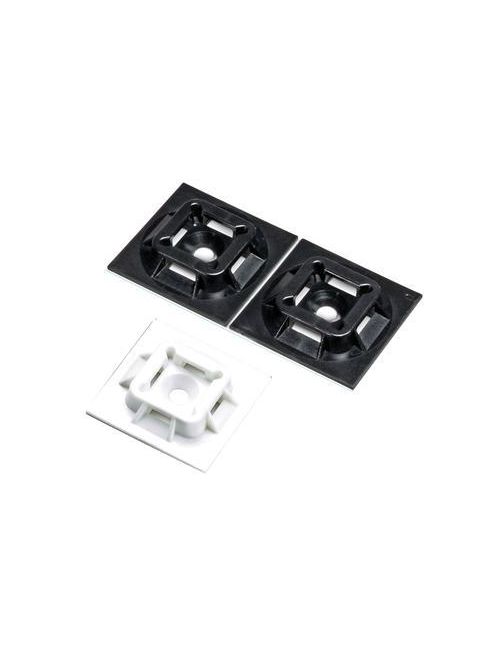

Panduit ABM100-A-D 1 x 1 Inch (25.4 x 25.4 mm) Adhesive Cable Tie Mount
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$565.93/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # ABM100-A-D
North Coast Part # 667911

Specifications

  • Product Segment: IEI
  • Product Type: Cable Tie Mount
  • Application: Used with Miniature, Intermediate, and Standard Cables Ties
  • Color: White
  • Environment: Indoor
  • Material: Nylon 6.6
  • Maximum Operating Temperature (°C): 49
  • Maximum Operating Temperature (°F): 120.2
  • Minimum Operating Temperature (°F): -20.2
  • Minimum Operating Temperature (°C): -29
  • Mount Method: Rubber Adhesive Tape
  • Overall Height (In.): 0.24
  • Overall Height (mm): 6.1
  • Overall Length (In.): 1
  • Overall Length (mm): 25.4
  • Overall Width (mm): 25.4
  • Overall Width (In.): 1
  • Standards Met: RoHS Compliant
  • Static Load Capacity (kg): 0.2
  • Static Load Capacity (lb): 0.5

Packaging Details

  • UPC: 07498328106
  • GTIN Package: 00074983281060
  • Standard Package Volume Ft3: 0.1285
  • Standard Package Weight Pounds: 1.7500
  • Std Package Height In: 3.05
  • Std Package Height MM: 77.47
  • Std Package Length In: 12.05
  • Std Package Length MM: 306.07
  • Std Package Width In: 9.95
  • Std Package Width MM: 252.73
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • GTIN Carton: 50074983281065
  • Standard Carton Volume Ft3: 0.1285
  • Standard Carton Weight Pounds: 17.5000
  • Std Carton Height In: 10.85
  • Std Carton Height MM: 275.59
  • Std Carton Length In: 14.8
  • Std Carton Length MM: 306.07
  • Std Carton Width In: 14.6
  • Std Carton Width MM: 370.84
  • Std Ctn Qty: 5000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983281060
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 180,000
  • Pallet Volume: 46.263843
  • Pallet Weight: 630.0000

Categories

Overview

UPC 07498328106

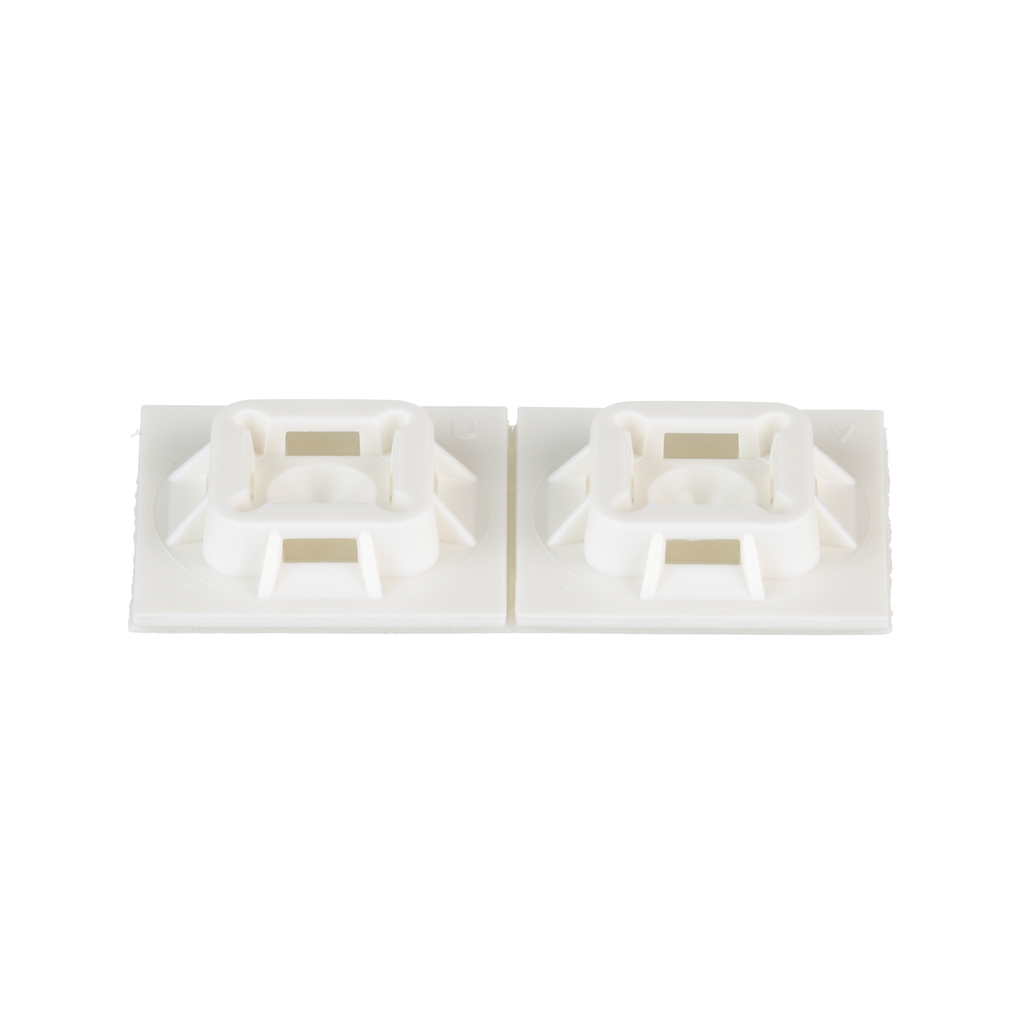

Item Long Description Panduits ABM100-A-D 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor environments. They are 1 x 1 (25.4mm x 25.4mm), supplied in strips of 2, are white in color and come in packages of 500.
GTiN 00074983281060
Width 1 in
Color White
Type Cable Tie Mount
Material Nylon
Height 0.24 in
Country of Origin US
Screw Size #6 (M3)
Pkg Qty 500
Family Brand Name Panduit
Max Operating Temperature 120.2 degrees F
Overall Length 1 in
Min Operating Temperature -20.2 degrees F
Sub Brand Cable Tie Mount
CA Prop65 Warning No
Mounting Type Rubber Adhesive Tape
