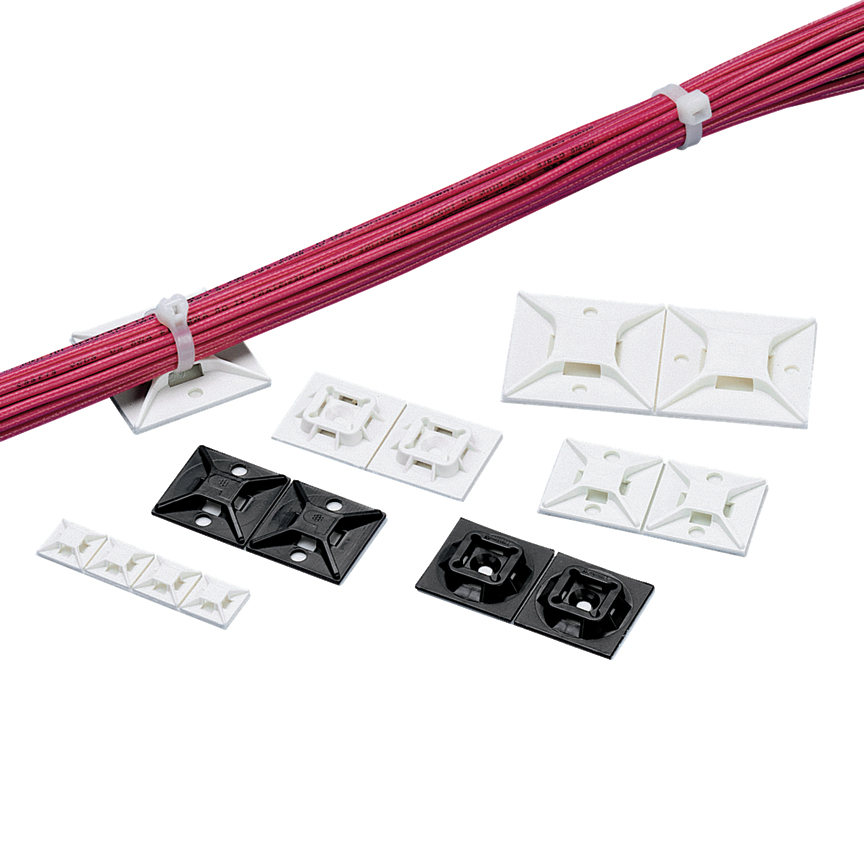

PAN ABM2S-AT-C CableTieMount,HiTmp,

Specifications

• Product Segment: IEI
• Application: Used with Miniature, Intermediate, and Standard Cables Ties
• Product Type: Cable Tie Mount
• Color: White
• Environment: Indoor
• Material: ABS
• Maximum Compatible Panel Thickness (In.): 0.04
• Maximum Compatible Panel Thickness (mm): 1
• Maximum Operating Temperature (°F): 179.6
• Maximum Operating Temperature (°C): 82
• Minimum Operating Temperature (°C): -29
• Minimum Operating Temperature (°F): -20.2
• Mount Method: Acrylic Adhesive Tape
• Mounting Hole Thread Size: 0.16
• Overall Height (In.): 0.2
• Overall Height (mm): 5.1
• Overall Length (In.): 1
• Overall Length (mm): 25.4
• Overall Width (mm): 25.4
• Overall Width (In.): 1
• Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
• Static Load Capacity (lb): 0.5
• Static Load Capacity (kg): 0.2

Packaging Details

• UPC: 07498358496
• GTIN Package: 00074983584963
• Standard Package Volume Ft3: 0.0539
• Standard Package Weight Pounds: 0.3700
• Std Package Height In: 1.7
• Std Package Height MM: 43.18
• Std Package Length In: 7.65
• Std Package Length MM: 194.31
• Std Package Width In: 6.2
• Std Package Width MM: 157.48
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983584968
• Standard Carton Volume Ft3: 0.0539
• Standard Carton Weight Pounds: 1.8500
• Std Carton Height In: 4.4
• Std Carton Height MM: 111.76
• Std Carton Length In: 10.45
• Std Carton Length MM: 194.31
• Std Carton Width In: 10.35
• Std Carton Width MM: 262.89
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983584963
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
