PAN ARC.68-A-C14 Panduit ARC.68-A-C
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$924.66/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # ARC.68-A-C14
North Coast Part # 933421

Specifications

  • Product Segment: IEI
  • Product Type: Adjustable and releasable clamp
  • Application: For securing wires and cables via range-taking clamping ability
  • Color: Gray
  • Environment: Indoor
  • Material: Polypropylene
  • Maximum Bundle Diameter (In.): 0.68
  • Maximum Bundle Diameter (mm): 17.3
  • Maximum Operating Temperature (°C): 65
  • Maximum Operating Temperature (°F): 149
  • Minimum Operating Temperature (°C): -29
  • Minimum Operating Temperature (°F): -20
  • Mount Method: Rubber Adhesive Tape
  • Mounting Hole Diameter (mm): 3.8
  • Mounting Hole Diameter (In.): 0.15
  • Overall Height (In.): 0.41
  • Overall Height (mm): 10.4
  • Overall Length (In.): 1
  • Overall Length (mm): 25.4
  • Overall Width (mm): 25.4
  • Overall Width (In.): 1
  • Resistance Properties: Flame Resistance(UL94HB)
  • Standards Met: UL Recognized: E136577, RoHS Compliant
  • Static Load Capacity (kg): 0.2
  • Static Load Capacity (lb): 0.5
  • Sub Brand: Clincher™

Packaging Details

  • UPC: 07498358502
  • GTIN Package: 00074983585021
  • Standard Package Volume Ft3: 0.1410
  • Standard Package Weight Pounds: 0.5900
  • Std Package Height In: 2.85
  • Std Package Height MM: 72.39
  • Std Package Length In: 10
  • Std Package Length MM: 254
  • Std Package Width In: 8.6
  • Std Package Width MM: 218.44
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983585026
  • Standard Carton Volume Ft3: 0.1410
  • Standard Carton Weight Pounds: 2.9500
  • Std Carton Height In: 9.65
  • Std Carton Height MM: 245.11
  • Std Carton Length In: 14.5
  • Std Carton Length MM: 254
  • Std Carton Width In: 9.1
  • Std Carton Width MM: 231.14
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983585021
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498358502

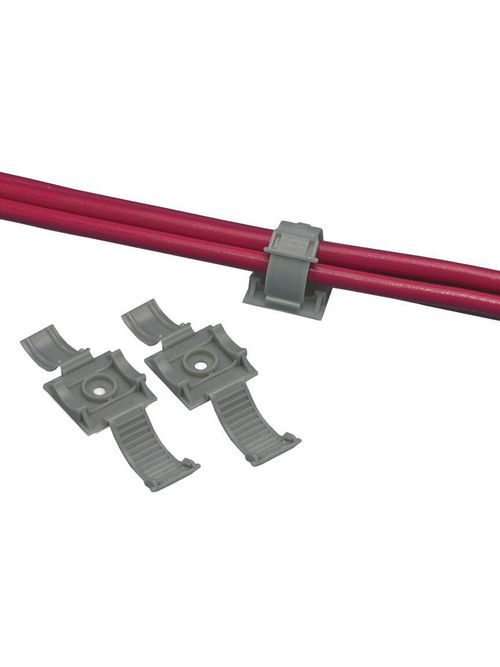

Item Long Description Panduit ARC.68-A-C14 Adjustable Releasable Clamps are designed to contain a range of cable bundle diameters. The latch can then be released after the initial installation to provide access to the cable bundles. For use in indoor environments and with bundles up to 0.69" (17.5mm) in diameter. Made of Polypropylene, are gray in color and come in packages of 100.
GTiN 00074983585021
Width 1 in
Color Gray
Type Adjustable And Releasable Clamp
Material Polypropylene
Applications Indoor
Height 0.41 in
Country of Origin US
Cable Size 17.5 mm
Pkg Qty 100
Family Brand Name Panduit
Overall Length 1 in
Sub Brand Clincher
CA Prop65 Warning No
Mounting Type Rubber Adhesive Tape
