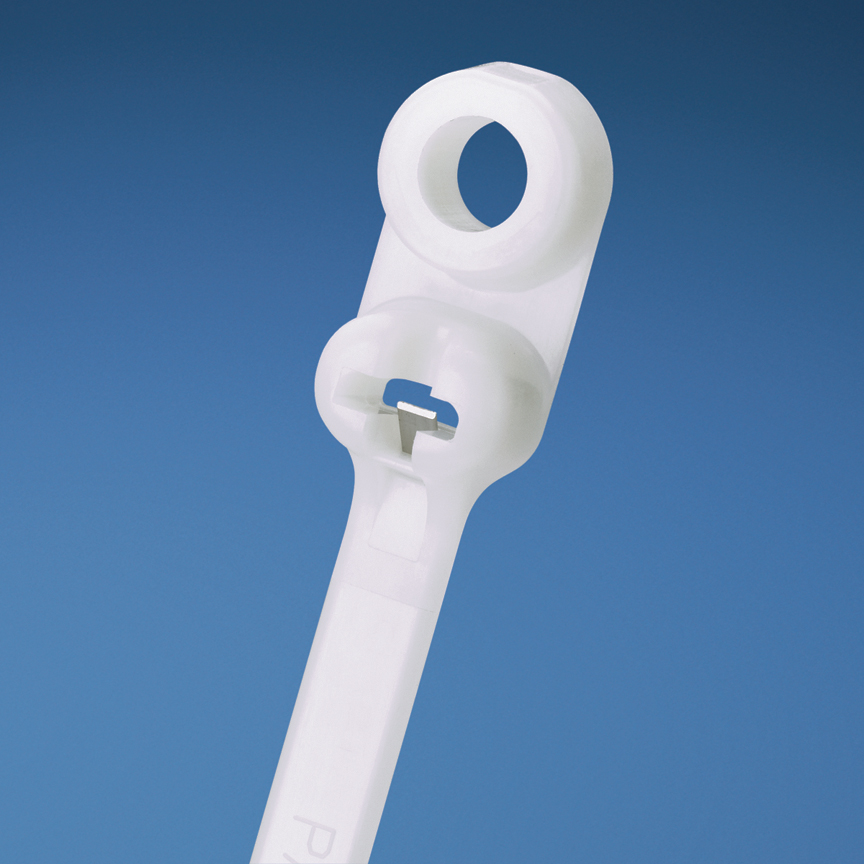

Panduit BC1.5I-S8-M Metal Barb 6.6 Inch 168 mm Intermediate Cross Section Clamp Tie

Specifications

• Product Segment: IEI
• UNSPSC: 39121703
• Product Type: Cable Tie
• Application: General
• Color: Natural
• Environment: Plenum
• Material: Nylon 6.6
• Standards Met: UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
• Screw Size: #8 (M4)
• Sub Brand: Dome-Top®
• Maximum Bundle Diameter (In.): 1.5
• Minimum Bundle Diameter (In.): 0.3
• Minimum Bundle Diameter (mm): 7.6
• Maximum Bundle Diameter (mm): 38.1
• Maximum Installation Temperature (°C): 0
• Minimum Installation Temperature (°C): -20
• Maximum Installation Temperature (°F): 32
• Minimum Installation Temperature (°F): -4
• Maximum Operating Temperature (°C): 85
• Minimum Operating Temperature (°C): -60
• Maximum Operating Temperature (°F): 185
• Minimum Operating Temperature (°F): -76
• Overall Length (In.): 6.6
• Overall Length (mm): 168
• Body Width (mm): 3.6
• Body Width (In.): 0.141
• Body Thickness (mm): 1
• Body Thickness (In.): 0.041
• Resistance Properties: NA
• Minimum Loop Tensile Strength (N): 178
• Minimum Loop Tensile Strength (lb): 40

Packaging Details

• UPC: 07498373874
• GTIN Package: 00074983738748
• Standard Package Volume Ft3: 0.1587
• Standard Package Weight Pounds: 1.8000
• Std Package Height In: 1.9
• Std Package Height MM: 48.26
• Std Package Length In: 12
• Std Package Length MM: 304.8
• Std Package Width In: 12
• Std Package Width MM: 304.8
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• GTIN Carton: 50074983738743
• Standard Carton Volume Ft3: 0.1587
• Standard Carton Weight Pounds: 45.0000
• Std Carton Height In: 21.41
• Std Carton Height MM: 543.814
• Std Carton Length In: 21.96
• Std Carton Length MM: 304.8
• Std Carton Width In: 14.58
• Std Carton Width MM: 370.332
• Std Ctn Qty: 25000
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983738748
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1000
