PAN BC1M-S4-M ClTie,MBarb,4.6L,Mini
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$229.70/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BC1M-S4-M
North Coast Part # 598825

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121703
  • Application: General
  • Product Type: Cable Tie
  • Color: Natural
  • Environment: Plenum
  • Material: Nylon 6.6
  • Standards Met: UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
  • Screw Size: #4 (M2.5)
  • Sub Brand: Dome-Top®
  • Maximum Bundle Diameter (In.): 0.9
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Bundle Diameter (mm): 1.5
  • Maximum Bundle Diameter (mm): 22.9
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Temperature (°C): 0
  • Minimum Installation Temperature (°F): -4
  • Maximum Installation Temperature (°F): 32
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°F): 185
  • Overall Length (In.): 4.6
  • Overall Length (mm): 117
  • Body Width (mm): 2.4
  • Body Width (In.): 0.095
  • Body Thickness (In.): 0.046
  • Body Thickness (mm): 1.2
  • Resistance Properties: NA
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Loop Tensile Strength (lb): 18

Packaging Details

  • UPC: 07498373862
  • GTIN Package: 00074983738625
  • Standard Package Volume Ft3: 0.0684
  • Standard Package Weight Pounds: 1.0000
  • Std Package Height In: .4
  • Std Package Height MM: 10.16
  • Std Package Length In: 21
  • Std Package Length MM: 533.4
  • Std Package Width In: 14
  • Std Package Width MM: 355.6
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983738620
  • Standard Carton Volume Ft3: 0.0684
  • Standard Carton Weight Pounds: 50.0000
  • Std Carton Height In: 18.41
  • Std Carton Height MM: 467.614
  • Std Carton Length In: 21.96
  • Std Carton Length MM: 533.4
  • Std Carton Width In: 14.58
  • Std Carton Width MM: 370.332
  • Std Ctn Qty: 50000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983738625
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000

Categories

Overview

UPC 07498373862

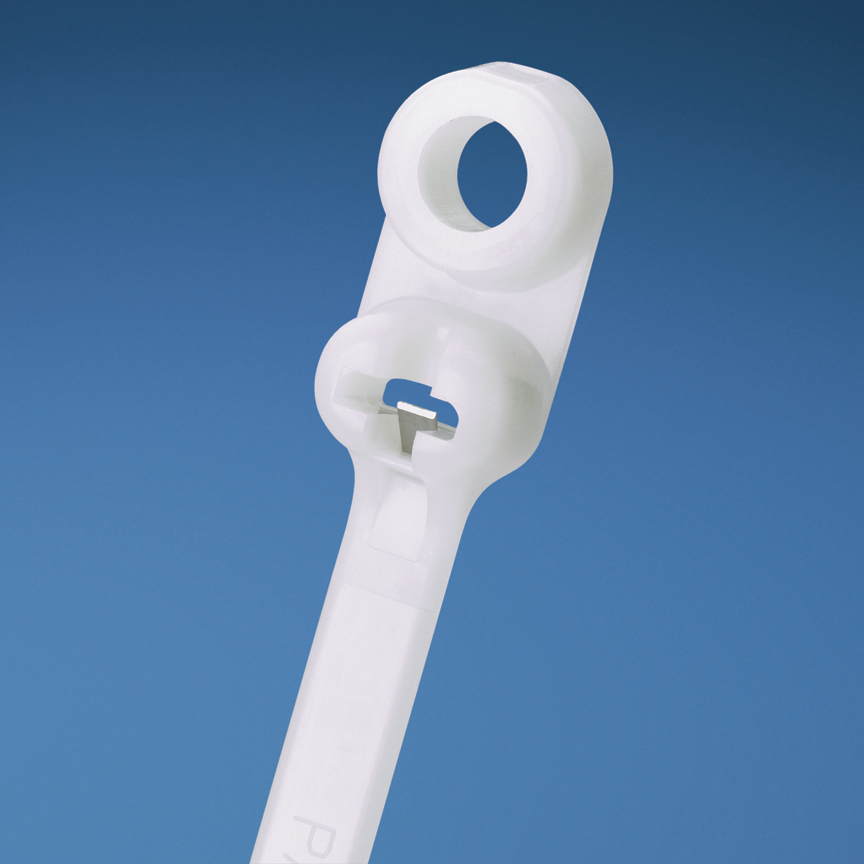

Item Long Description Dome-Top barb ty clamp tie, miniature cross section, #4 (M2.5) screw, 4.6 (117mm) length, nylon 6.6, natural.
GTiN 00074983738625
Width 5.9 mm
Color Natural
Type Cable Tie
Thickness 1.4 mm
Material Nylon
Applications General
Country of Origin Costa Rica
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 4.6 in
Min Operating Temperature -76 degrees F
Tensile Strength 80 lb
Bundle Diameter 22.9 mm
Sub Brand Dome-Top
CA Prop65 Warning No
UNSPSC 39121703
