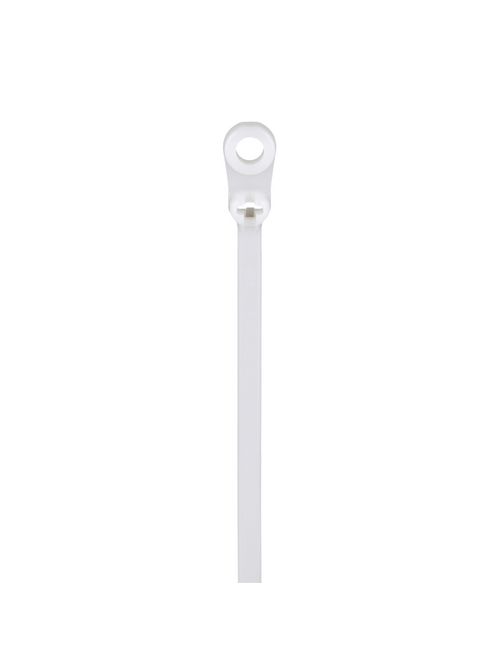

Panduit BC2S-S10-D Metal Barb 8.5 Inch 216 mm Standard Cross Section Clamp Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$265.26/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BC2S-S10-D
North Coast Part # 598826

Specifications

  • Product Segment: IEI
  • Product Type: Locking Clamp Ties
  • Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
  • Color: Natural
  • Environment: Indoor
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
  • Material: Nylon 6.6
  • Standards Met: UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
  • Screw Size: #10 (M5)
  • Minimum Bundle Diameter (In.): 0.06
  • Sub Brand: Dome-Top®
  • Maximum Bundle Diameter (In.): 2
  • Minimum Bundle Diameter (mm): 1.5
  • Maximum Bundle Diameter (mm): 51
  • Maximum Installation Temperature (°C): 0
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Temperature (°F): 32
  • Minimum Installation Temperature (°F): -4
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°F): 185
  • Mounting Hole Width (In.): 0.4
  • Mounting Hole Diameter (In.): 0.2
  • Mounting Hole Width (mm): 10.2
  • Mounting Hole Diameter (mm): 5.1
  • Overall Length (In.): 8.5
  • Overall Length (mm): 216
  • Body Width (mm): 4.7
  • Body Width (In.): 0.185
  • Body Thickness (In.): 0.052
  • Body Thickness (mm): 1.3
  • Resistance Properties: NA
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50

Packaging Details

  • UPC: 07498370776
  • GTIN Package: 00074983707768
  • Standard Package Volume Ft3: 0.1672
  • Standard Package Weight Pounds: 2.0209
  • Std Package Height In: 3.8
  • Std Package Height MM: 96.52
  • Std Package Length In: 13.8
  • Std Package Length MM: 350.52
  • Std Package Width In: 10.15
  • Std Package Width MM: 257.81
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • GTIN Carton: 50074983707763
  • Standard Carton Volume Ft3: 0.1672
  • Standard Carton Weight Pounds: 40.4180
  • Std Carton Height In: 18.45
  • Std Carton Height MM: 468.63
  • Std Carton Length In: 22.05
  • Std Carton Length MM: 350.52
  • Std Carton Width In: 14.85
  • Std Carton Width MM: 377.19
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983707768
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000

Overview

UPC 07498370776
GTiN 00074983707768
Width 10.2 mm
Color Natural
Type Locking Clamp Ties
Thickness 1.6 mm
Material Nylon
Applications General
Country of Origin Costa Rica
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 10000
Max Operating Temperature 185 degrees F
Overall Length 8.5 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 50.8 mm
Sub Brand Dome-Top
CA Prop65 Warning No
