PAN BC2S-S10-D0 Panduit BC2S-S10-D0
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$318.89/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BC2S-S10-D0
North Coast Part # 598839

Specifications

  • Product Segment: IEI
  • Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
  • Product Type: Locking Clamp Ties
  • Color: Black
  • Environment: Outdoor
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
  • Material: Weather Resistant Nylon 6.6
  • Standards Met: UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854)
  • Screw Size: #10 (M5)
  • Maximum Bundle Diameter (In.): 2
  • Sub Brand: Dome-Top®
  • Minimum Bundle Diameter (In.): 0.06
  • Maximum Bundle Diameter (mm): 51
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Temperature (°C): 0
  • Minimum Installation Temperature (°F): -4
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°F): 185
  • Mounting Hole Width (In.): 0.4
  • Mounting Hole Diameter (In.): 0.2
  • Mounting Hole Width (mm): 10.2
  • Mounting Hole Diameter (mm): 5.1
  • Overall Length (In.): 8.5
  • Overall Length (mm): 216
  • Body Width (In.): 0.185
  • Body Width (mm): 4.7
  • Body Thickness (In.): 0.052
  • Body Thickness (mm): 1.3
  • Resistance Properties: UV Resistant
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Loop Tensile Strength (N): 222

Packaging Details

  • UPC: 07498370777
  • GTIN Package: 00074983707775
  • Standard Package Volume Ft3: 0.1672
  • Standard Package Weight Pounds: 1.9000
  • Std Package Height In: 3.95
  • Std Package Height MM: 100.33
  • Std Package Length In: 13.2
  • Std Package Length MM: 335.28
  • Std Package Width In: 9.2
  • Std Package Width MM: 233.68
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • GTIN Carton: 50074983707770
  • Standard Carton Volume Ft3: 0.1672
  • Standard Carton Weight Pounds: 38.0000
  • Std Carton Height In: 18.35
  • Std Carton Height MM: 466.09
  • Std Carton Length In: 22.2
  • Std Carton Length MM: 335.28
  • Std Carton Width In: 15.2
  • Std Carton Width MM: 386.08
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983707775
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000
  • Pallet Quantity: 120,000
  • Pallet Volume: 40.134792
  • Pallet Weight: 456.0000

Overview

UPC 07498370777

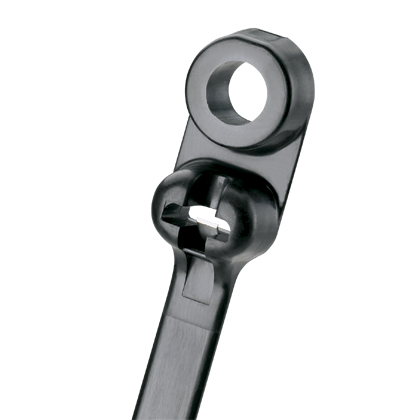

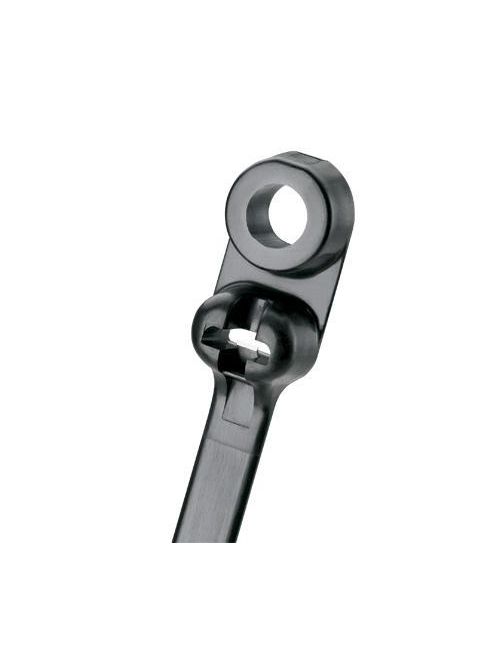

Item Long Description The BC2S-S10-D0 Dome-Top barb ty clamp tie, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.5 (216mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 500.
GTiN 00074983707775
Width 4.7 mm
Color Black
Type Standard Cross Section, UV-Resistant, Weather Resistant, Halogen-Free
Thickness 1.3 mm
Material Weather Resistant Nylon 6/6
Applications For General, Outdoor use
Country of Origin Costa Rica
Pkg Qty 500
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 8.5 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 N
Bundle Diameter 50.8 mm
Sub Brand Dome-Top
CA Prop65 Warning No
Length 8.5 in
Temperature Rating -60 to 85 C
Standard Packaging Qty 500/Pack
Environmental Conditions 32 F
