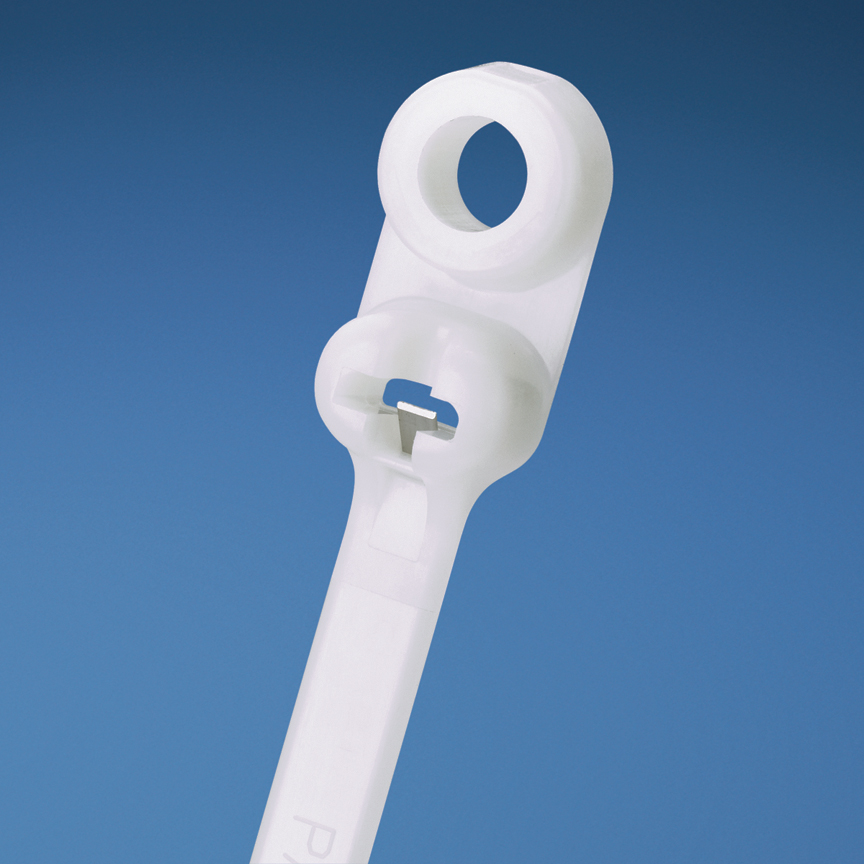

PAN BC4S-S10-C ClTie,MBarb,15.6L,St
$113.46/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BC4S-S10-C
North Coast Part # 598841

Specifications

  • UNSPSC: 39121703
  • Product Segment: IEI
  • Application: General
  • Product Type: Cable Tie
  • Color: Natural
  • Environment: Plenum
  • Material: Nylon 6.6
  • Standards Met: UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
  • Screw Size: #10 (M5)
  • Sub Brand: Dome-Top®
  • Minimum Bundle Diameter (In.): 0.06
  • Maximum Bundle Diameter (In.): 4
  • Minimum Bundle Diameter (mm): 1.5
  • Maximum Bundle Diameter (mm): 101.6
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Temperature (°C): 0
  • Minimum Installation Temperature (°F): -4
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°F): 185
  • Overall Length (In.): 15.6
  • Overall Length (mm): 396
  • Body Width (mm): 4.7
  • Body Width (In.): 0.185
  • Body Thickness (mm): 1.3
  • Body Thickness (In.): 0.052
  • Resistance Properties: NA
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Loop Tensile Strength (N): 222

Packaging Details

  • UPC: 07498352330
  • GTIN Package: 00074983523306
  • Standard Package Volume Ft3: 0.0556
  • Standard Package Weight Pounds: 0.8000
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 17.4
  • Std Package Length MM: 441.96
  • Std Package Width In: 5.6
  • Std Package Width MM: 142.24
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983523301
  • Standard Carton Volume Ft3: 0.0556
  • Standard Carton Weight Pounds: 8.0000
  • Std Carton Height In: 6.15
  • Std Carton Height MM: 156.21
  • Std Carton Length In: 16.95
  • Std Carton Length MM: 441.96
  • Std Carton Width In: 9.15
  • Std Carton Width MM: 232.41
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983523306
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498352330
GTiN 00074983523306
Width 0.19 in
Color Natural
Type Cable Tie
Thickness 0.05 IN
Material Nylon
Applications General
Country of Origin Costa Rica
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 1000
Max Operating Temperature 185 degrees F
Overall Length 15.6 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 4.00 IN
Sub Brand Dome-Top
CA Prop65 Warning No
UNSPSC 39121703
