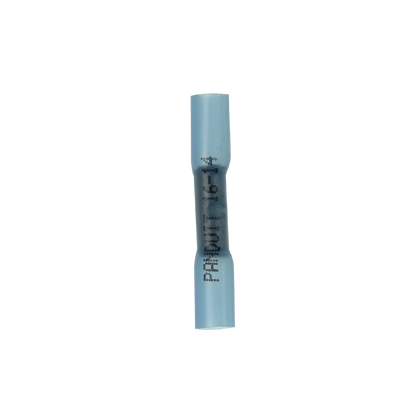

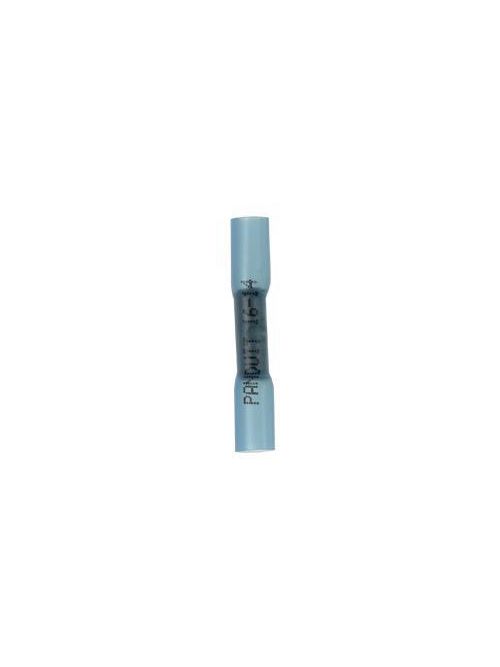

Panduit BSH14-Q 16-14 AWG Heat Shrink Butt Splice
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$233.91/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSH14-Q
North Coast Part # 10855

Specifications

  • Product Segment: IEI
  • Product Type: Heat Shrink Butt Splice
  • Maximum Copper Conductor Size (AWG STR): #14
  • Minimum Copper Conductor Size (AWG STR): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Sub Brand: Pan-Term®
  • Copper Conductor Size (AWG): #16 - #14
  • Barrel Type: Standard
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Insulation Type: Polyolefin
  • Insulation Material: Heat Shrink
  • Standards Met: C22.2 No 65, UL 486C
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Overall Length (mm): 36.8
  • Overall Length (In.): 1.45
  • Wire Strip Length (In.): 5/16
  • Wire Strip Length (mm): 7.9
  • UL Temperature Rating (°F): 257
  • UL Temperature Rating (°C): 125
  • CSA Temperature Rating (°C): 125
  • CSA Temperature Rating (°F): 257

Packaging Details

  • UPC: 07498381824
  • GTIN Package: 00074983818242
  • Standard Package Volume Ft3: 0.0067
  • Standard Package Weight Pounds: 0.1250
  • Std Package Height In: .65
  • Std Package Height MM: 16.51
  • Std Package Length In: 6.4
  • Std Package Length MM: 162.56
  • Std Package Width In: 4.1
  • Std Package Width MM: 104.14
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50074983818247
  • Standard Carton Volume Ft3: 0.0067
  • Standard Carton Weight Pounds: 0.6250
  • Std Carton Height In: 3.4
  • Std Carton Height MM: 86.36
  • Std Carton Length In: 8.1
  • Std Carton Length MM: 162.56
  • Std Carton Width In: 4.45
  • Std Carton Width MM: 113.03
  • Std Ctn Qty: 125
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983818242
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498381824
Item Long Description The BSH14-Q Pan-Term Splice is a heat-shrink insulated butt splice. Internal wire stop assures proper insertion length for a quality connection. Brazed seem protects the terminal barrel from splitting during the crimp process.
GTiN 00074983818242
Finish Tin Plated
Size 16-14
Color Blue
Type Insulated
Barrel Type Seamless
Material Copper
Country of Origin US
Temperature Rating 230 F
Pkg Qty 25
Family Brand Name Panduit
TC Connection Standard
Overall Length 1.45 in
Color Coding Blue
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
Conductor Size 16-14 AWG
Connection Type Standard
Contact Material Copper
