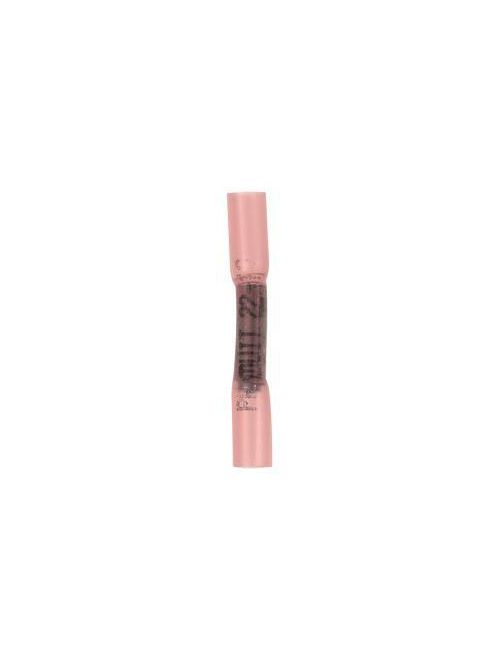

Panduit BSH18-Q 22-18 AWG Heat Shrink Butt Splice
Product image thumbnail 0
Product image thumbnail 1
$229.49/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSH18-Q
North Coast Part # 604690

Specifications

  • Product Segment: IEI
  • Product Type: Heat Shrink Butt Splice
  • Maximum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1
  • Sub Brand: Pan-Term®
  • Copper Conductor Size (AWG): #22 - #18
  • Barrel Type: Standard
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Insulation Material: Heat Shrink
  • Insulation Type: Polyolefin
  • Standards Met: C22.2 No 65, UL 486C
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Overall Length (In.): 1.45
  • Overall Length (mm): 36.8
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 5/16
  • UL Temperature Rating (°C): 125
  • UL Temperature Rating (°F): 257
  • CSA Temperature Rating (°C): 125
  • CSA Temperature Rating (°F): 257

Packaging Details

  • UPC: 07498381823
  • GTIN Package: 00074983818235
  • Standard Package Volume Ft3: 0.0067
  • Standard Package Weight Pounds: 0.1100
  • Std Package Height In: .75
  • Std Package Height MM: 19.05
  • Std Package Length In: 4.05
  • Std Package Length MM: 102.87
  • Std Package Width In: 3.9
  • Std Package Width MM: 99.06
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50074983818230
  • Standard Carton Volume Ft3: 0.0067
  • Standard Carton Weight Pounds: 0.5500
  • Std Carton Height In: 3.45
  • Std Carton Height MM: 87.63
  • Std Carton Length In: 8.1
  • Std Carton Length MM: 102.87
  • Std Carton Width In: 4.5
  • Std Carton Width MM: 114.3
  • Std Ctn Qty: 125
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983818235
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498381823
GTiN 00074983818235
Finish Tin Plated
Size 1.45 IN
Color Red
Type Insulated
Barrel Type Seamless
Material Copper, Tin Plated Heat Shrinkable Polyolefin
Country of Origin US
Wire Size 22-18 AWG
Temperature Rating -65 to 230 F
Pkg Qty 25
Family Brand Name Panduit
Carton Qty 125
Overall Length 1.45 in
Color Coding Red
Sub Brand Pan-Term
CA Prop65 Warning No
Conductor Size 22-18 AWG
Connection Type Crimp
Strip Length 0.31 in
Contact Material Copper
