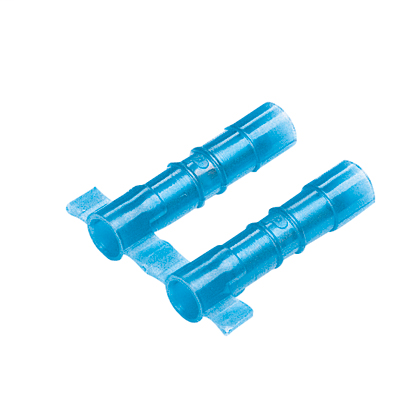

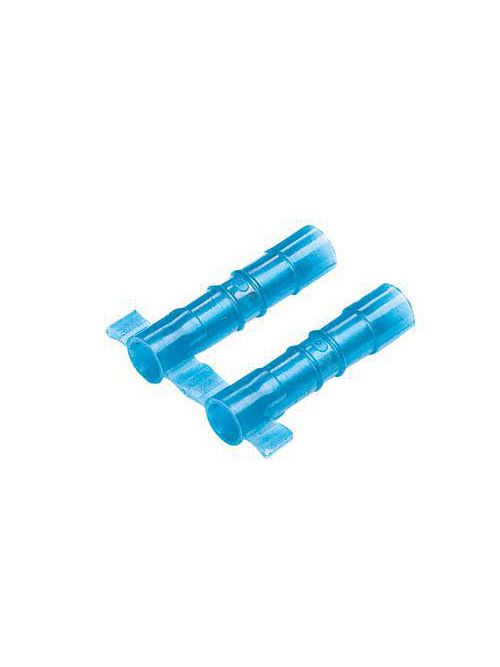

PAN BSN14-3K Butt Splice,nyl insul,
$300.85/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 3000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSN14-3K
North Coast Part # 762975

Specifications

  • Product Segment: IEI
  • Product Type: Butt Splice
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #18
  • Minimum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG): #18
  • Maximum Aluminum Conductor Size (AWG): NA
  • Minimum Aluminum Conductor Size (AWG): NA
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Copper Conductor Size (AWG): #18 - #14
  • Class G Copper Flex Conductor Size (AWG): NA
  • Class M Copper Flex Conductor Size (AWG): NA
  • Class H Copper Flex Conductor Size (AWG): NA
  • Class K Copper Flex Conductor Size (AWG): NA
  • Class I Copper Flex Conductor Size (AWG): NA
  • Aluminum Conductor Size (AWG): NA
  • Barrel Type: Brazed Seam
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • CSA Temperature Rating (°C): 125
  • Base Material: Copper
  • Insulation Material: Standard Nylon
  • Standards Met: C22.2 No 65, UL 486C
  • Barrel Length (In.): 0.95
  • Barrel Length (mm): 24.1
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Overall Length (mm): 24.1
  • Overall Length (In.): 0.95
  • Overall Width (In.): 0.24
  • Overall Width (mm): 6.1
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Sub Brand: Reel Smart

Packaging Details

  • UPC: 07498383017
  • GTIN Package: 00074983830176
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 12.6000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983830176
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3,000

Overview

UPC 07498383017
GTiN 00074983830176
Finish Tin-Plated
Width 0.24 in
Size 18 - 14
Color Blue
Type Butt Splice
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Overall Length 0.95 in
Barrel Length 0.95 in
Color Coding Blue
Sub Brand Reel Smart
