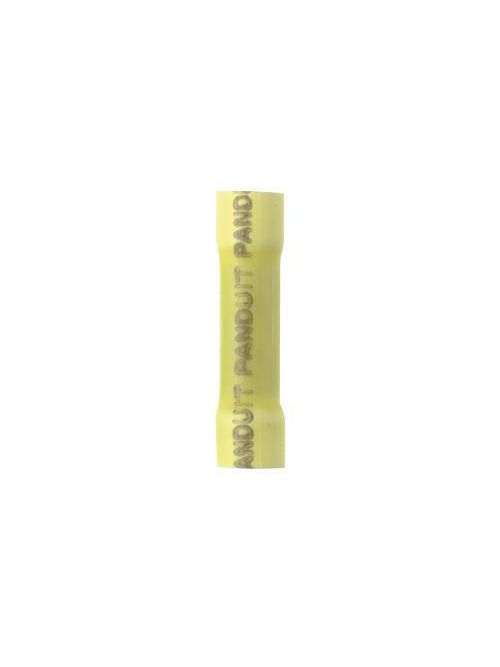

Panduit BSV10X-D 12-10 AWG Vinyl Insulated Butt Splice
Product image thumbnail 0
Product image thumbnail 1
$570.89/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSV10X-D
North Coast Part # 604691

Specifications

  • Product Segment: IEI
  • Product Type: Butt Splice
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Maximum Metric Conductor Size (mm²): 6
  • Sub Brand: Pan-Term®
  • Minimum Metric Conductor Size (mm²): 4
  • Copper Conductor Size (AWG): #12 - #10
  • Barrel Type: Funnel Entry
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Insulation Material: Vinyl
  • Standards Met: C22.2 No 65, UL 486C
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Overall Length (mm): 30
  • Overall Length (In.): 1.18
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 5/16
  • UL Temperature Rating (°C): 105
  • UL Temperature Rating (°F): 221
  • CSA Temperature Rating (°C): 105
  • CSA Temperature Rating (°F): 221

Packaging Details

  • UPC: 07498383105
  • GTIN Package: 00074983831050
  • Standard Package Volume Ft3: 0.1019
  • Standard Package Weight Pounds: 3.6500
  • Std Package Height In: 4.35
  • Std Package Height MM: 110.49
  • Std Package Length In: 9.1
  • Std Package Length MM: 231.14
  • Std Package Width In: 4.35
  • Std Package Width MM: 110.49
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.1019
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 231.14
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983831050
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498383105
GTiN 00074983831050
Finish Tin-Plated
Size 12 - 10
Color Yellow
Type Butt Splice
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
TC Connection Expanded
Overall Length 1.18 in
Barrel Length 1.18 in
Color Coding Yellow
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
