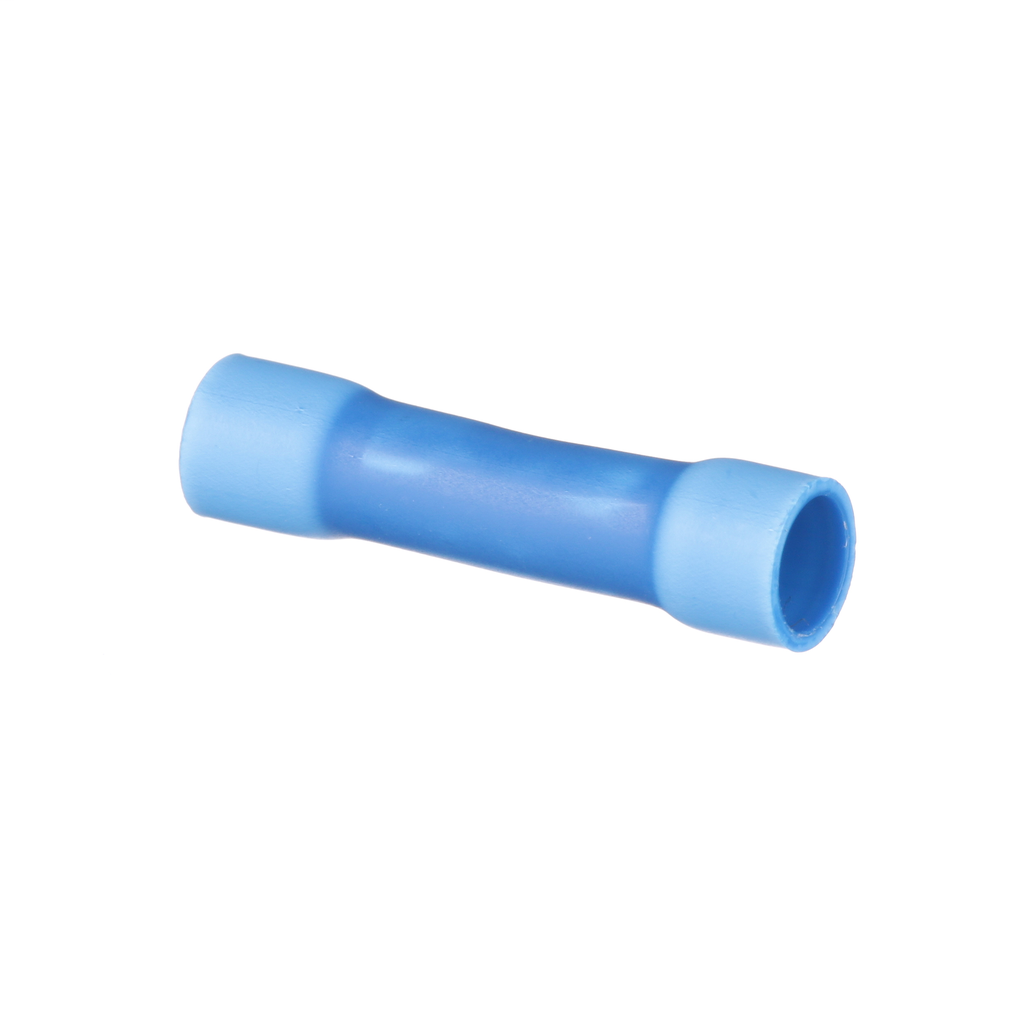

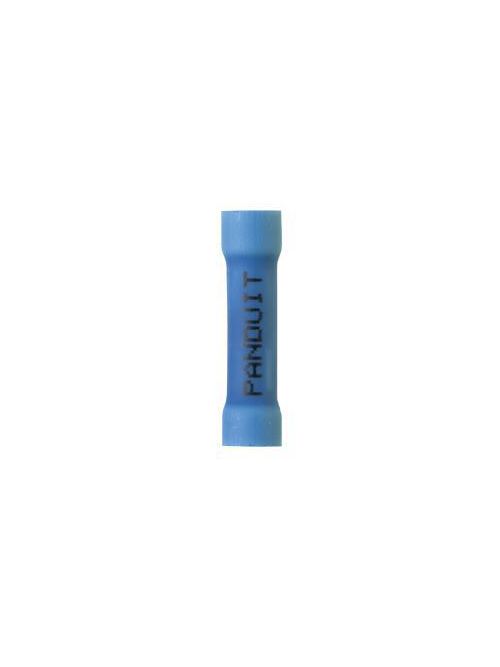

Panduit BSV14X-L 16-14 AWG Vinyl Insulated Butt Splice
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$70.19/c (100 ea)
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSV14X-L
North Coast Part # 265777

Specifications

  • Product Segment: IEI
  • Product Type: Butt Splice
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Maximum Aluminum Conductor Size (AWG): NA
  • Minimum Aluminum Conductor Size (AWG): NA
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Copper Conductor Size (AWG): #16 - #14
  • Class H Copper Flex Conductor Size (AWG): NA
  • Class G Copper Flex Conductor Size (AWG): NA
  • Class I Copper Flex Conductor Size (AWG): NA
  • Class K Copper Flex Conductor Size (AWG): NA
  • Class M Copper Flex Conductor Size (AWG): NA
  • Aluminum Conductor Size (AWG): NA
  • Barrel Type: Brazed Seam
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • CSA Temperature Rating (°C): 105
  • Base Material: Copper
  • Insulation Material: Vinyl
  • Standards Met: C22.2 No 65, UL 486C
  • Barrel Length (mm): 26.4
  • Barrel Length (In.): 1.04
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Overall Length (In.): 1.04
  • Overall Length (mm): 26.4
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Sub Brand: Pan-Term

Packaging Details

  • UPC: 07498352162
  • GTIN Package: 00074983521623
  • Standard Package Volume Ft3: 0.0064
  • Standard Package Weight Pounds: 0.1700
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983521628
  • Standard Carton Volume Ft3: 0.0064
  • Standard Carton Weight Pounds: 1.7000
  • Std Carton Height In: 3.8
  • Std Carton Height MM: 96.52
  • Std Carton Length In: 9.45
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.4
  • Std Carton Width MM: 111.76
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983521623
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498352162
GTiN 00074983521623
Finish Tin Plated
Size 16 - 14
Color Blue
Type Loose-Piece, Long Sleeve
Barrel Type Brazed Seam
Material Copper
Conductor Size 16-14 AWG
Country of Origin MX
Temperature Rating 221 C
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Expanded
Overall Length 1.04 in
Barrel Length 1.04 in
Color Coding Blue
Sub Brand Pan-Term
CA Prop65 Warning No
