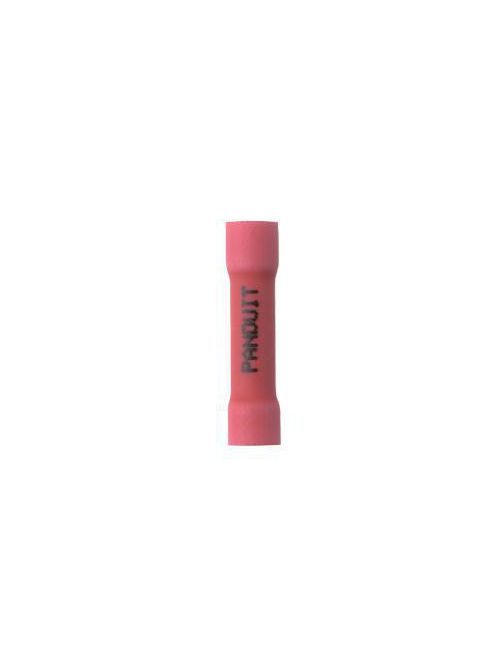

Panduit BSV18X-LY 22-18 AWG Vinyl Insulated Butt Splice
Product image thumbnail 0
Product image thumbnail 1
$70.86/c (100 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSV18X-LY
North Coast Part # 266056

Specifications

  • Product Segment: IEI
  • Note: BSV18X-LY replaces BSMV1BX-LY
  • Product Type: Butt Splice
  • Maximum Copper Conductor Size (AWG SOL): #18
  • Maximum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Minimum Metric Conductor Size (mm²): 0.5
  • Sub Brand: Pan-Term®
  • Maximum Metric Conductor Size (mm²): 1
  • Copper Conductor Size (AWG): #22 - #18
  • Barrel Type: Funnel Entry
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Insulation Material: Vinyl
  • Standards Met: C22.2 No 65, UL 486C
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Overall Length (In.): 1.03
  • Overall Length (mm): 26.2
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 5/16
  • UL Temperature Rating (°F): 221
  • UL Temperature Rating (°C): 105
  • CSA Temperature Rating (°C): 105
  • CSA Temperature Rating (°F): 221

Packaging Details

  • UPC: 07498368553
  • GTIN Package: 00074983685530
  • Standard Package Volume Ft3: 0.0064
  • Standard Package Weight Pounds: 0.1550
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.85
  • Std Package Width MM: 46.99
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983685535
  • Standard Carton Volume Ft3: 0.0064
  • Standard Carton Weight Pounds: 1.5500
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.55
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 3.95
  • Std Carton Width MM: 100.33
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983685530
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498368553
GTiN 00074983685530
Finish Tin Plated
Size 22 - 18
Color Red
Type UL Model, Loose-Piece, Long Sleeve
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Expanded
Overall Length 1.03 in
Barrel Length 1.03 in
Color Coding Red
Sub Brand Pan-Term
CA Prop65 Warning No
Conductor Size 22-18 AWG
Connection Type Expanded, Percussion
Contact Material Copper
Voltage 600 Volt
