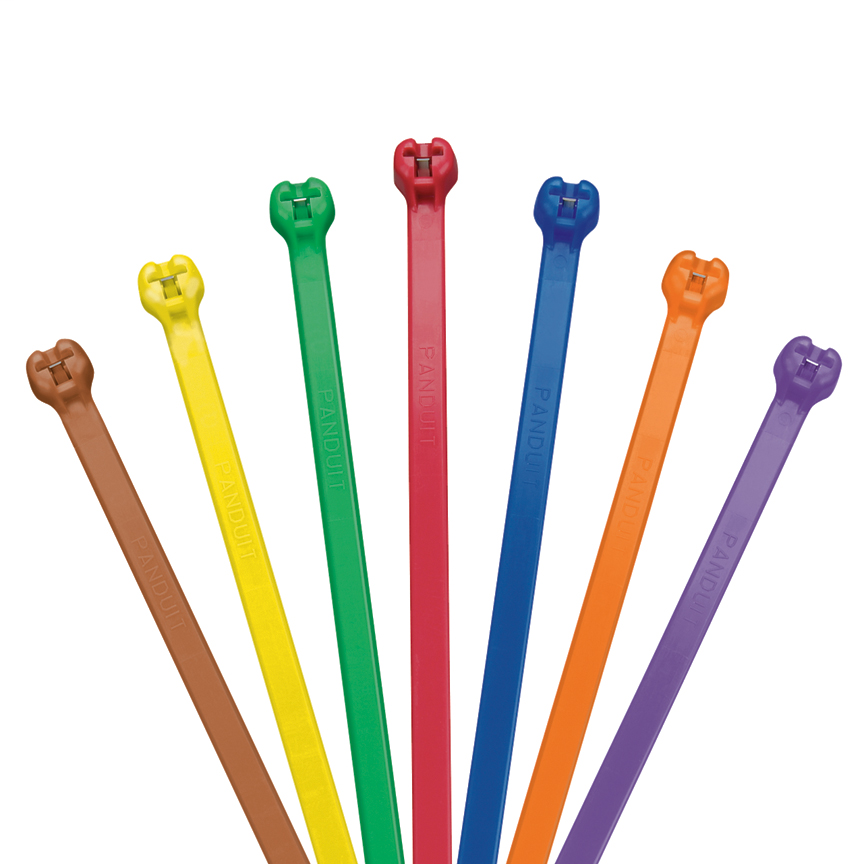

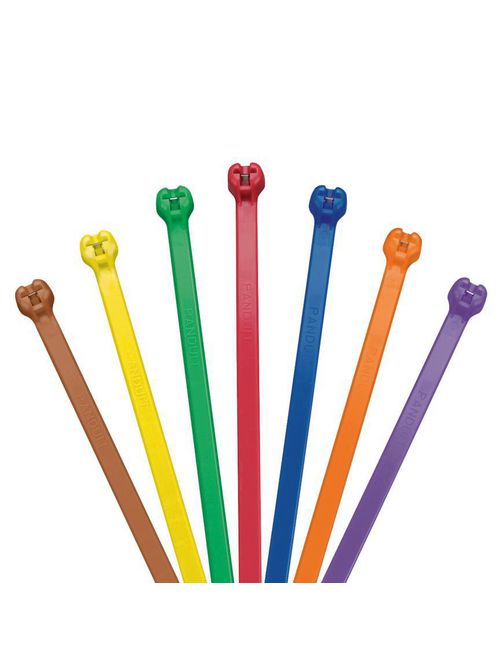

PAN BT1.5I-M7 CTie,MBarb,6.1L,Intm,
$104.20/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BT1.5I-M7
North Coast Part # 604692

Specifications

  • UNSPSC: 39121703
  • Color: Purple
  • Environment: Plenum
  • For Use With: GTS-E, GS2B-E, STS2, PTS
  • Material: Nylon 6.6
  • Resistance Properties: Heat Resistant
  • Maximum Bundle Diameter (In.): 1.5
  • Maximum Bundle Diameter (mm): 38.1
  • Maximum Installation Temperature (°C): 0
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°F): 185
  • Maximum Operating Temperature (°C): 85
  • Minimum Bundle Diameter (mm): 0.8
  • Minimum Bundle Diameter (In.): 0.03
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 40
  • Minimum Loop Tensile Strength (N): 177.92
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 6.1
  • Overall Length (mm): 154.9
  • Overall Thickness (In.): 0.04
  • Overall Thickness (mm): 1
  • Overall Width (mm): 6.3
  • Overall Width (In.): 0.25
  • Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Complaint

Packaging Details

  • UPC: 07498341354
  • GTIN Package: 00074983413546
  • Standard Package Volume Ft3: 0.1071
  • Standard Package Weight Pounds: 1.4000
  • Std Package Height In: 1
  • Std Package Height MM: 25.4
  • Std Package Length In: 14
  • Std Package Length MM: 355.6
  • Std Package Width In: 8
  • Std Package Width MM: 203.2
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983413541
  • Standard Carton Volume Ft3: 0.1071
  • Standard Carton Weight Pounds: 35.0000
  • Std Carton Height In: 14.41
  • Std Carton Height MM: 366.014
  • Std Carton Length In: 21.96
  • Std Carton Length MM: 355.6
  • Std Carton Width In: 14.58
  • Std Carton Width MM: 370.332
  • Std Ctn Qty: 25000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983413546
  • NLD HS Code: 3926909790000000000000
  • USA HS Code: 3926909990000000000000
  • USA HS Code 10digit: 3926909990
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498341354
GTiN 00074983413546
Length 6.1 in
Width 0.25 in
Color Purple
Type Cable Tie
Thickness 0.04 IN
Material Nylon
Applications General
Family Brand Name Panduit
Buy American Compliant Yes
CE Compliant Yes
ARRA Compliant Yes
Hazmat Flag No
Tensile Strength 40 LBS
Head Width .248 in
Bundle Diameter 1.5 IN
Sub Brand Dome-Top
Country of Origin CR
Pkg Qty 1000
Carton Qty 25000
Max Operating Temperature 185 degrees F
Overall Length 6.1 in
Min Operating Temperature -76 degrees F
CA Prop65 Warning No
