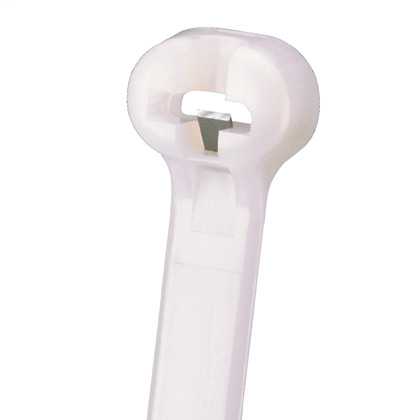

Panduit BT4LH-TL Metal Barb 14.9 Inch (378 mm) Light-Heavy Cross Section Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$610.00/m (1000 ea)
In Stock | 1500 available at 1 location
ea
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BT4LH-TL
North Coast Part # 604694

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Natural
  • Environment: Indoor
  • Sub Brand: Dome-Top®
  • For use with: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (mm): 102
  • Maximum Bundle Diameter (In.): 4
  • Maximum Installation Temperature (°F): 32
  • Maximum Installation Temperature (°C): 0
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (mm): 4.8
  • Minimum Bundle Diameter (In.): 0.188
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • Minimum Loop Tensile Strength (N): 534
  • Minimum Loop Tensile Strength (lb): 120
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 14.9
  • Overall Length (mm): 378
  • Body Width (In.): 0.275
  • Body Width (mm): 7
  • Body Thickness (mm): 1.7
  • Body Thickness (In.): 0.065
  • Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint

Packaging Details

  • UPC: 07498341271
  • GTIN Package: 00074983412716
  • Standard Package Volume Ft3: 0.1957
  • Standard Package Weight Pounds: 3.1416
  • Std Package Height In: 2.85
  • Std Package Height MM: 72.39
  • Std Package Length In: 19.75
  • Std Package Length MM: 501.65
  • Std Package Width In: 12.95
  • Std Package Width MM: 328.93
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 250
  • GTIN Carton: 50074983412711
  • Standard Carton Volume Ft3: 0.1957
  • Standard Carton Weight Pounds: 31.4158
  • Std Carton Height In: 14.4
  • Std Carton Height MM: 365.76
  • Std Carton Length In: 23.1
  • Std Carton Length MM: 501.65
  • Std Carton Width In: 10.8
  • Std Carton Width MM: 274.32
  • Std Ctn Qty: 2500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983412716
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 250

Categories

Overview

UPC 07498341271
GTiN 00074983412716
Width 7 mm
Color Natural
Type Internal Toothing, Plenum
Thickness 1.7 mm
Material Nylon 6.6
Applications General Purpose
Country of Origin Costa Rica
Pkg Qty 250
Family Brand Name Panduit
Carton Qty 2500
Max Operating Temperature 185 degrees F
Overall Length 14.9 in
Min Operating Temperature -76 degrees F
Tensile Strength 534 N
Bundle Diameter 102 mm
Sub Brand Dome-Top
CA Prop65 Warning No
Length 14.9 in
Standard Packaging Qty 250/Pack
