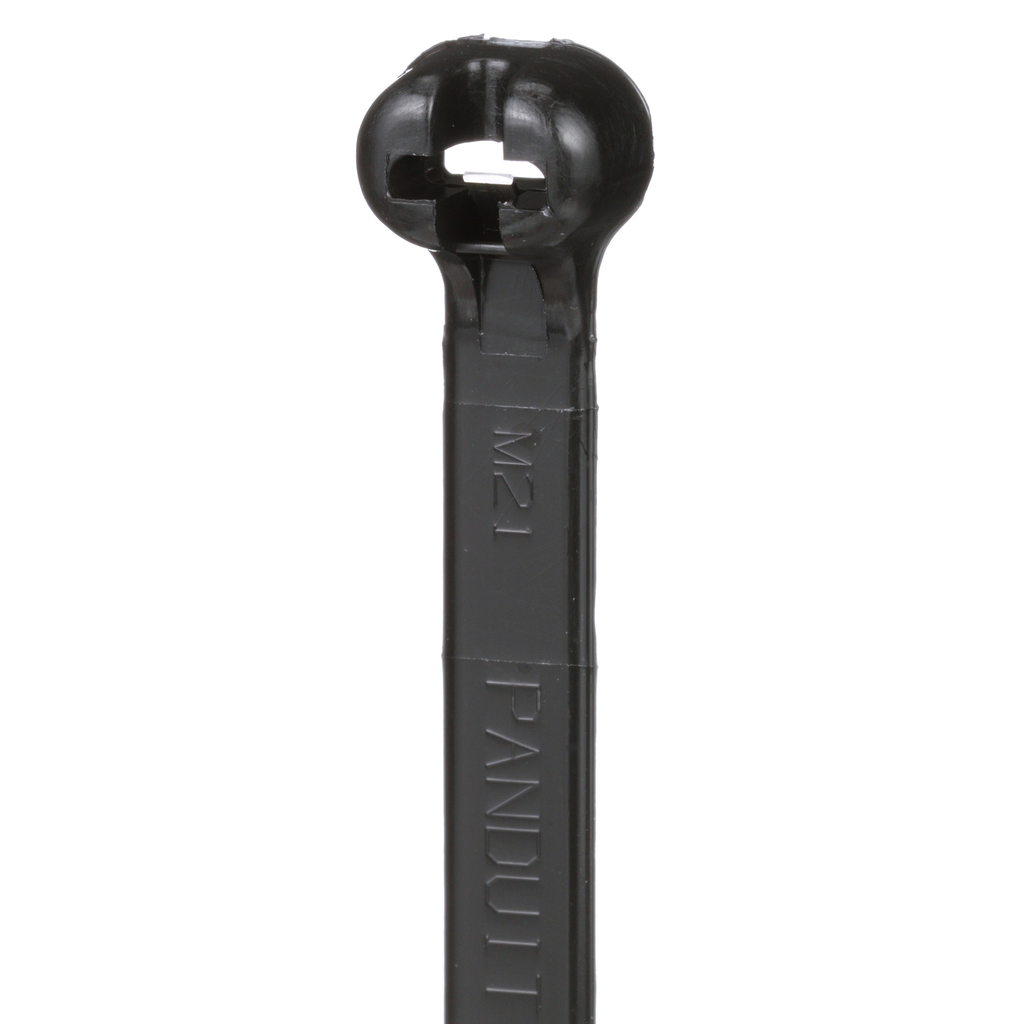

Panduit BT7LH-C0 Metal Barb 24.4 Inch (620 mm) Light-Heavy Cross Section Cable Tie

Specifications

• Product Segment: IEI
• Product Type: Cable Ties
• Color: Black
• Environment: Indoor/Outdoor
• Sub Brand: Dome-Top®
• For Use With: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
• Material: Weather Resistant Nylon 6.6
• Resistance Properties: UV Resistant
• Maximum Bundle Diameter (In.): 7
• Maximum Bundle Diameter (mm): 178
• Maximum Installation Temperature (°F): 32
• Maximum Installation Temperature (°C): 0
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Minimum Bundle Diameter (mm): 4.8
• Minimum Bundle Diameter (In.): 0.188
• Minimum Installation Temperature (°F): -4
• Minimum Installation Temperature (°C): -20
• Minimum Loop Tensile Strength (lb): 120
• Minimum Loop Tensile Strength (N): 534
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Overall Length (In.): 24.4
• Overall Length (mm): 620
• Body Width (mm): 7
• Body Width (In.): 0.275
• Body Thickness (mm): 1.7
• Body Thickness (In.): 0.065
• Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint

Packaging Details

• UPC: 07498341288
• GTIN Package: 00074983412884
• Standard Package Volume Ft3: 0.1416
• Standard Package Weight Pounds: 1.9842
• Std Package Height In: 2.25
• Std Package Height MM: 57.15
• Std Package Length In: 27.15
• Std Package Length MM: 689.61
• Std Package Width In: 5.95
• Std Package Width MM: 151.13
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983412889
• Standard Carton Volume Ft3: 0.1416
• Standard Carton Weight Pounds: 39.6832
• Std Carton Height In: 11.12
• Std Carton Height MM: 282.448
• Std Carton Length In: 44.21
• Std Carton Length MM: 689.61
• Std Carton Width In: 9.96
• Std Carton Width MM: 252.984
• Std Ctn Qty: 2000
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983412884
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 500
• Pallet Quantity: 40,000
• Pallet Volume: 56.634234
• Pallet Weight: 793.6632
