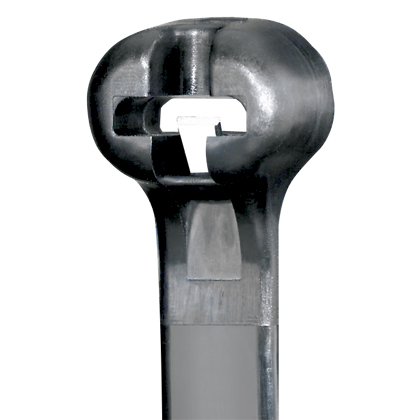

Panduit BT8LH-L0 Metal Barb 27.5 Inch 699 mm Cable Tie

Specifications

• Product Segment: IEI
• UNSPSC: 39121703
• Product Type: Cable Tie
• Color: Black
• Sub Brand: Dome-Top®
• Environment: Plenum
• For use with: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
• Material: Nylon 6.6
• Resistance Properties: UV Resistant
• Maximum Bundle Diameter (mm): 203.2
• Maximum Bundle Diameter (In.): 8
• Maximum Installation Temperature (°F): 32
• Maximum Installation Temperature (°C): 0
• Maximum Operating Temperature (°F): 185
• Maximum Operating Temperature (°C): 85
• Minimum Bundle Diameter (mm): 4.8
• Minimum Bundle Diameter (In.): 0.19
• Minimum Installation Temperature (°F): -4
• Minimum Installation Temperature (°C): -20
• Minimum Loop Tensile Strength (N): 534
• Minimum Loop Tensile Strength (lb): 120
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Overall Length (In.): 27.5
• Overall Length (mm): 699
• Body Width (In.): 0.275
• Body Width (mm): 7
• Body Thickness (In.): 0.065
• Body Thickness (mm): 1.7
• Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint

Packaging Details

• UPC: 07498341291
• GTIN Package: 00074983412914
• Standard Package Volume Ft3: 0.1499
• Standard Package Weight Pounds: 1.4250
• Std Package Height In: 1.2
• Std Package Height MM: 30.48
• Std Package Length In: 32
• Std Package Length MM: 812.8
• Std Package Width In: 5.9
• Std Package Width MM: 149.86
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983412919
• Standard Carton Volume Ft3: 0.1499
• Standard Carton Weight Pounds: 14.2500
• Std Carton Height In: 7
• Std Carton Height MM: 177.8
• Std Carton Length In: 32.6
• Std Carton Length MM: 812.8
• Std Carton Width In: 11
• Std Carton Width MM: 279.4
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983412914
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 50
