Panduit CCH25-S10-C .25 Inch 6.4 mm Bundle #10 Screw Fixed Diameter Clamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$18.36/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # CCH25-S10-C
North Coast Part # 210414

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121702
  • Note: Not available in Japan
  • Product Type: Cable Clamp
  • Color: Natural
  • Environment: Indoor
  • Finish/Coating: Galvanized
  • Material: Nylon 6.6
  • Maximum Bundle Diameter (mm): 6.4
  • Maximum Bundle Diameter (In.): 0.25
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°F): 185
  • Mount Method: #10 (M5) Screw
  • Mounting Bolt Method: Non-Threaded
  • Mounting Hole Diameter (In.): 0.2
  • Mounting Hole Diameter (mm): 5.1
  • Overall Height (In.): 0.25
  • Overall Height (mm): 6.4
  • Overall Length (mm): 11.7
  • Overall Length (In.): 0.46
  • Overall Width (In.): 0.5
  • Overall Width (mm): 12.7
  • Resistance Properties: Flame-Resistant
  • Standards Met: UL Recognized E136577, RoHS Compliant
  • Maximum Flange Thickness (mm): 1.3
  • Maximum Flange Thickness (In.): 0.05

Packaging Details

  • UPC: 07498360007
  • GTIN Package: 00074983600076
  • Standard Package Volume Ft3: 0.0266
  • Standard Package Weight Pounds: 0.2300
  • Std Package Height In: 1.65
  • Std Package Height MM: 41.91
  • Std Package Length In: 5.65
  • Std Package Length MM: 143.51
  • Std Package Width In: 4.55
  • Std Package Width MM: 115.57
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983600071
  • Standard Carton Volume Ft3: 0.0266
  • Standard Carton Weight Pounds: 1.1500
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 10.1
  • Std Carton Length MM: 143.51
  • Std Carton Width In: 6.2
  • Std Carton Width MM: 157.48
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983600076
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500
  • Pallet Quantity: 159,500
  • Pallet Volume: 42.384494
  • Pallet Weight: 366.8500

Categories

Overview

UPC 07498360007

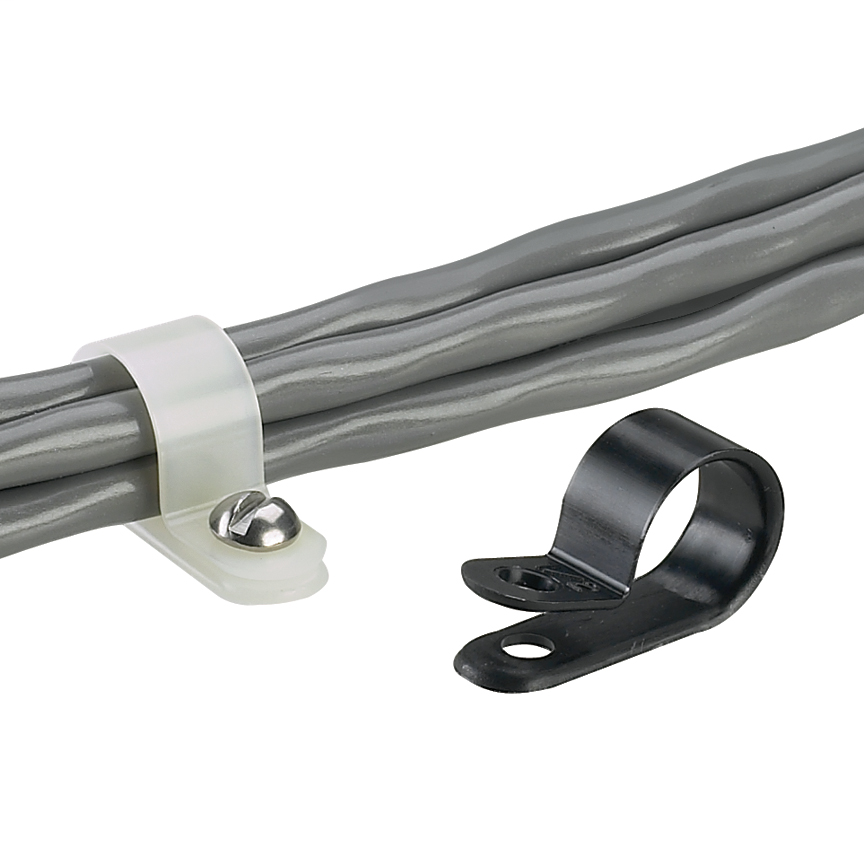

Item Long Description Fixed diameter cable clamp, heavy duty, #10 screw (M5), .25" (6.4mm) bundle, white, standard package.
GTiN 00074983600076
Finish Galvanized
Width 0.5 in
Color Natural
Type Fixed Diameter, Closed
Material Nylon 6/6
Applications Indoor
Height 0.25 in
Country of Origin US
Cable Size 6.3 mm
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 0.46 in
Min Operating Temperature -76 degrees F
CA Prop65 Warning No
UNSPSC 39121702
Mounting Type #10 (M5) Screw
