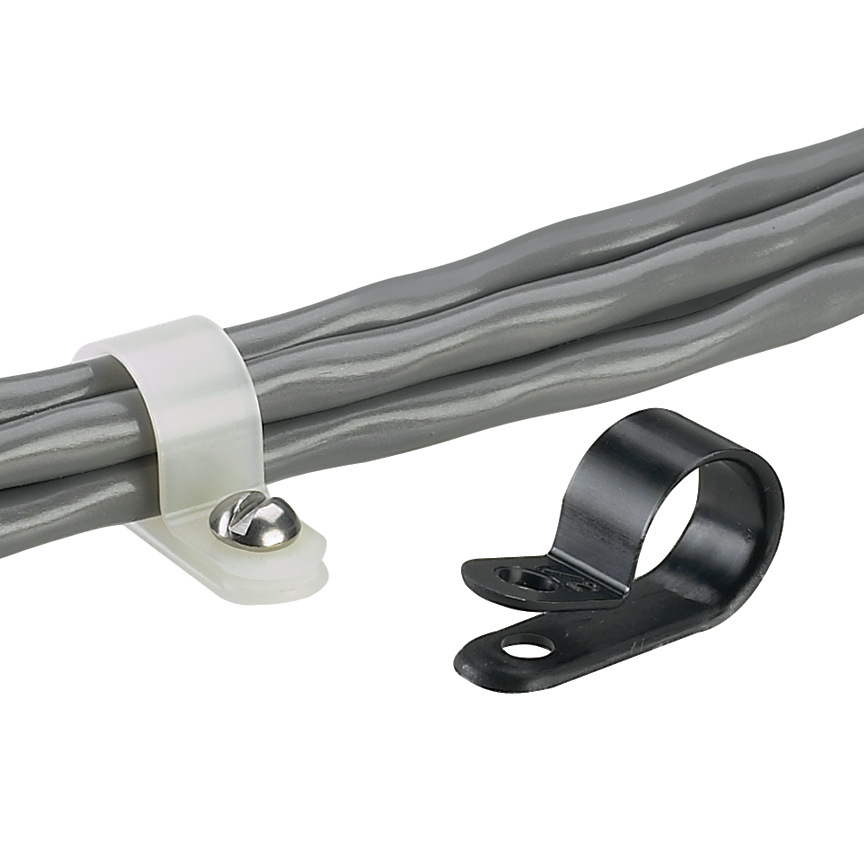

PAN CCH38-S10-M0 FxdDiaClmp,.38"Bdl

Specifications

• UNSPSC: 39121702
• Product Segment: IEI
• Note: Not available in Japan
• Product Type: Cable Clamp
• Color: Black
• Environment: Outdoor
• Material: Nylon 6.6
• Maximum Bundle Diameter (mm): 9.6
• Maximum Bundle Diameter (In.): 0.38
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Mount Method: #10 (M5) Screw
• Mounting Hole Diameter (In.): 0.2
• Mounting Hole Diameter (mm): 5.1
• Overall Height (mm): 9.6
• Overall Height (In.): 0.38
• Overall Length (In.): 0.53
• Overall Length (mm): 13.5
• Overall Width (In.): 0.5
• Overall Width (mm): 12.7
• Resistance Properties: Flame-Resistant and Weather Resistant
• Standards Met: UL Recognized E136577, RoHS Compliant
• Maximum Flange Thickness (mm): 1.3
• Maximum Flange Thickness (In.): 0.05

Packaging Details

• UPC: 07498359847
• GTIN Package: 00074983598472
• Standard Package Volume Ft3: 0.2652
• Standard Package Weight Pounds: 2.3000
• Std Package Height In: 3.8
• Std Package Height MM: 96.52
• Std Package Length In: 13.2
• Std Package Length MM: 335.28
• Std Package Width In: 9.85
• Std Package Width MM: 250.19
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• GTIN Carton: 50074983598477
• Standard Carton Volume Ft3: 0.2652
• Standard Carton Weight Pounds: 11.5000
• Std Carton Height In: 10.85
• Std Carton Height MM: 275.59
• Std Carton Length In: 14.8
• Std Carton Length MM: 335.28
• Std Carton Width In: 14.4
• Std Carton Width MM: 365.76
• Std Ctn Qty: 5000
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983598472
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1000
