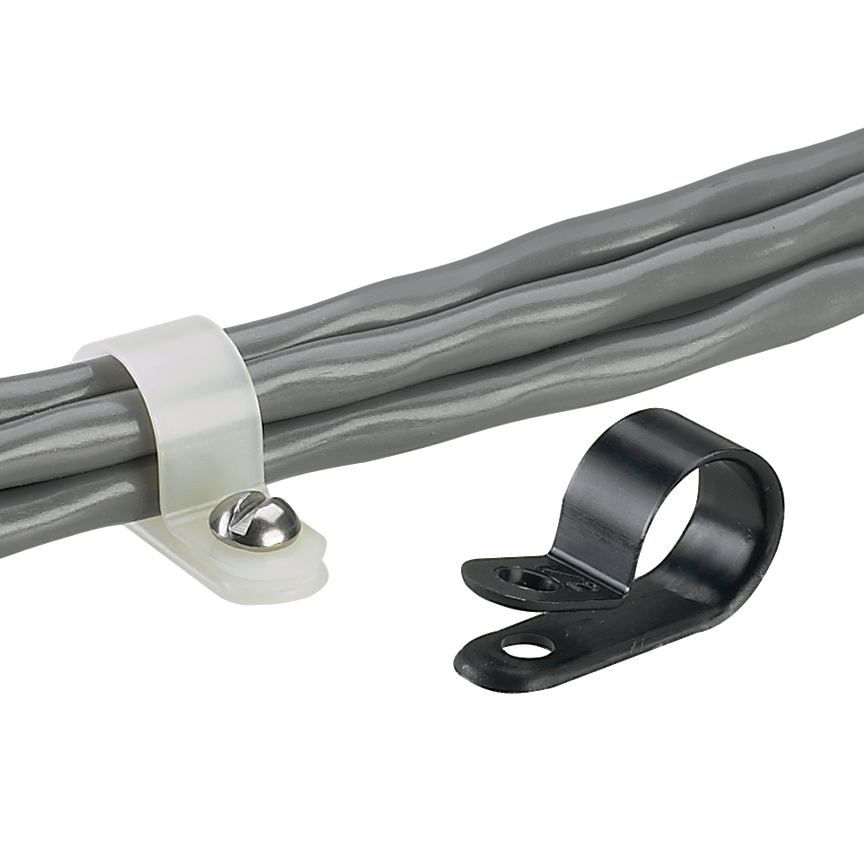

PAN CCH50-S10-C0 FxdDiaClmp,.50"Bdl
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$23.25/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # CCH50-S10-C0
North Coast Part # 605761

Specifications

  • UNSPSC: 39121702
  • Product Segment: IEI
  • Note: Not available in Japan
  • Product Type: Cable Clamp
  • Color: Black
  • Environment: Outdoor
  • Material: Nylon 6.6
  • Maximum Bundle Diameter (mm): 12.7
  • Maximum Bundle Diameter (In.): 0.5
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°F): 185
  • Maximum Operating Temperature (°C): 85
  • Mount Method: #10 (M5) Screw
  • Mounting Hole Diameter (In.): 0.2
  • Mounting Hole Diameter (mm): 5.1
  • Overall Height (mm): 12.7
  • Overall Height (In.): 0.5
  • Overall Length (In.): 0.59
  • Overall Length (mm): 15
  • Overall Width (In.): 0.5
  • Overall Width (mm): 12.7
  • Resistance Properties: Flame-Resistant and Weather Resistant
  • Standards Met: UL Recognized E136577, RoHS Compliant
  • Maximum Flange Thickness (In.): 0.05
  • Maximum Flange Thickness (mm): 1.3

Packaging Details

  • UPC: 07498356568
  • GTIN Package: 00074983565689
  • Standard Package Volume Ft3: 0.0568
  • Standard Package Weight Pounds: 0.3800
  • Std Package Height In: 1.85
  • Std Package Height MM: 46.99
  • Std Package Length In: 8.25
  • Std Package Length MM: 209.55
  • Std Package Width In: 5.65
  • Std Package Width MM: 143.51
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983565684
  • Standard Carton Volume Ft3: 0.0568
  • Standard Carton Weight Pounds: 1.9000
  • Std Carton Height In: 4.5
  • Std Carton Height MM: 114.3
  • Std Carton Length In: 10.3
  • Std Carton Length MM: 209.55
  • Std Carton Width In: 10.3
  • Std Carton Width MM: 261.62
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983565689
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Categories

Overview

UPC 07498356568
Item Long Description Fixed diameter cable clamp, heavy duty, #10 screw (M5), .50" (12.7mm) bundle, black, standard package.
GTiN 00074983565689
Width 0.5 in
Color Black
Type Cable Clamp
Material Nylon
Applications Outdoor
Height 0.5 in
Country of Origin US
Cable Size 12.7 mm
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 0.59 in
Min Operating Temperature -76 degrees F
CA Prop65 Warning No
UNSPSC 39121702
Mounting Type #10 (M5) Screw
