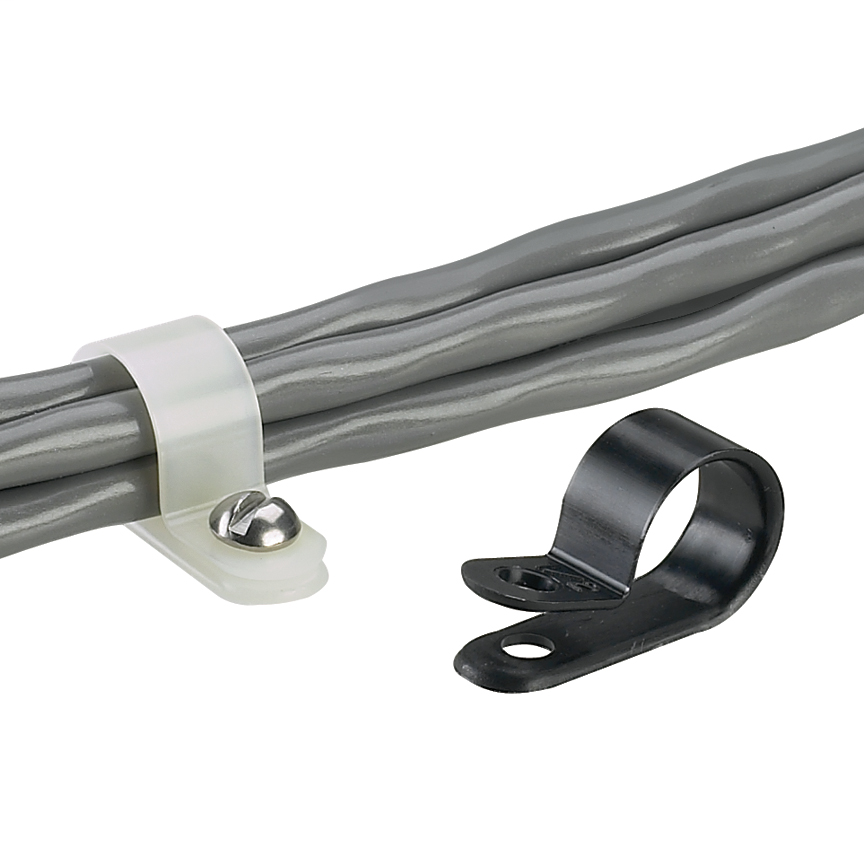

PAN CCH87-S10-D0 FxdDiaClmp,.87"Bdl

Specifications

• UNSPSC: 39121702
• Product Segment: IEI
• Product Type: Cable Clamp
• Note: Not available in Japan
• Color: Black
• Environment: Outdoor
• Material: Nylon 6.6
• Maximum Bundle Diameter (In.): 0.87
• Maximum Bundle Diameter (mm): 22.1
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Mount Method: #10 (M5) Screw
• Mounting Hole Diameter (In.): 0.2
• Mounting Hole Diameter (mm): 5.1
• Overall Height (mm): 22.1
• Overall Height (In.): 0.87
• Overall Length (mm): 21.3
• Overall Length (In.): 0.84
• Overall Width (mm): 12.7
• Overall Width (In.): 0.5
• Resistance Properties: Flame-Resistant and Weather Resistant
• Standards Met: UL Recognized E136577, RoHS Compliant
• Maximum Flange Thickness (In.): 0.05
• Maximum Flange Thickness (mm): 1.3

Packaging Details

• UPC: 07498359855
• GTIN Package: 00074983598557
• Standard Package Volume Ft3: 0.3350
• Standard Package Weight Pounds: 2.0500
• Std Package Height In: 14
• Std Package Height MM: 355.6
• Std Package Length In: 14
• Std Package Length MM: 355.6
• Std Package Width In: 1.5
• Std Package Width MM: 38.1
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 500
• GTIN Carton: 50074983598552
• Standard Carton Volume Ft3: 0.3350
• Standard Carton Weight Pounds: 20.5000
• Std Carton Height In: 18.41
• Std Carton Height MM: 467.614
• Std Carton Length In: 21.96
• Std Carton Length MM: 355.6
• Std Carton Width In: 14.58
• Std Carton Width MM: 370.332
• Std Ctn Qty: 5000
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983598557
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 5,000
• Pallet Quantity: 60,000
• Pallet Volume: 40.203955
• Pallet Weight: 246.0000
