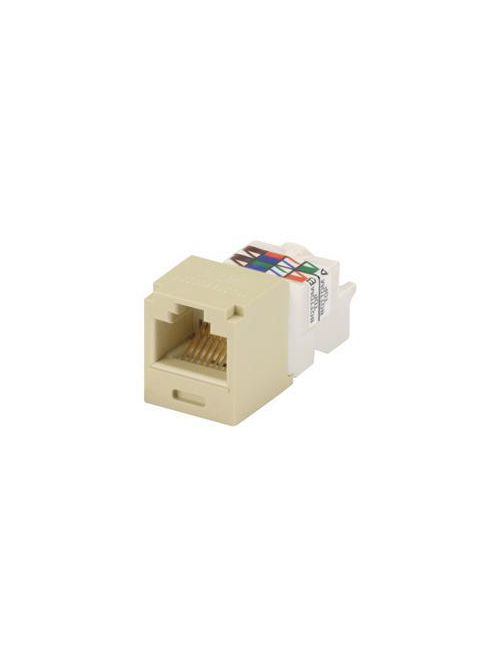

Panduit CJ688TPEI 8-Position 8-Wire Electric Ivory Category 6 Unshielded Twisted Pair Jack Module

Specifications

• Product Segment: EDI-ENT
• UNSPSC: 43223301
• Product Type: Jack Module
• Note: NA
• Performance Level: Category 6
• Connector Type: Jack Module
• Termination Style: TP Style
• Body Material: ABS
• Contact Material: Plated Phosphor Bronze
• Module Type: Mini-Com®
• Wiring Scheme: T568A/T568B
• Shield Type: Unshielded (UTP)
• Sub Brand: Pan-Net®
• Maximum Operating Temperature (°F): 149
• Maximum Operating Temperature (°C): 65
• Minimum Operating Temperature (°C): -10
• Minimum Operating Temperature (°F): 14
• Maximum Storage Temperature (°C): 70
• Maximum Storage Temperature (°F): 158
• Minimum Storage Temperature (°C): -40
• Minimum Storage Temperature (°F): -40
• Color: Electric Ivory
• RoHS Compliant: Yes
• Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
• Overall Depth (mm): 36.3
• Overall Depth (In.): 1.43
• Overall Height (In.): 0.71
• Overall Height (mm): 18
• Overall Length (mm): 36.3
• Overall Length (In.): 1.43
• Overall Width (mm): 16
• Overall Width (In.): 0.63

Packaging Details

• UPC: 07498399274
• GTIN Package: 00074983992744
• Standard Package Volume Ft3: 0.0032
• Standard Package Weight Pounds: 0.0240
• Std Package Height In: 1
• Std Package Height MM: 25.4
• Std Package Length In: 3.75
• Std Package Length MM: 95.25
• Std Package Width In: 2.5
• Std Package Width MM: 63.5
• Std. Pkg. UOM: Piece
• UOM EA PK: EA
• Std. Pkg. Qty.: 1
• GTIN Carton: 50074983992749
• Standard Carton Volume Ft3: 0.0032
• Standard Carton Weight Pounds: 1.2000
• Std Carton Height In: 3.65
• Std Carton Height MM: 92.71
• Std Carton Length In: 10.55
• Std Carton Length MM: 95.25
• Std Carton Width In: 7.25
• Std Carton Width MM: 184.15
• Std Ctn Qty: 50
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983992744
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 10
