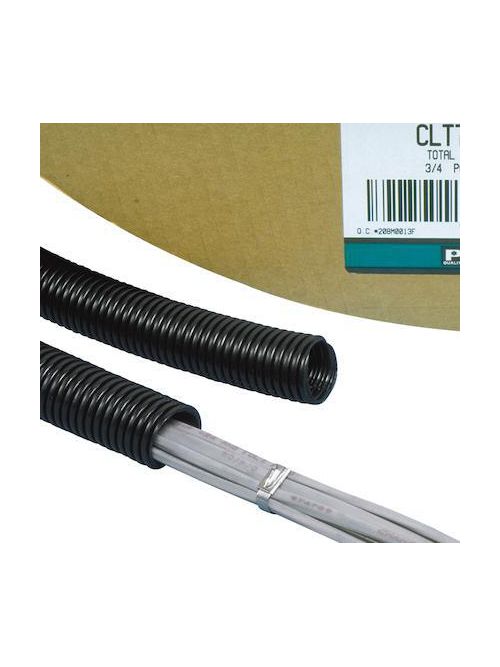

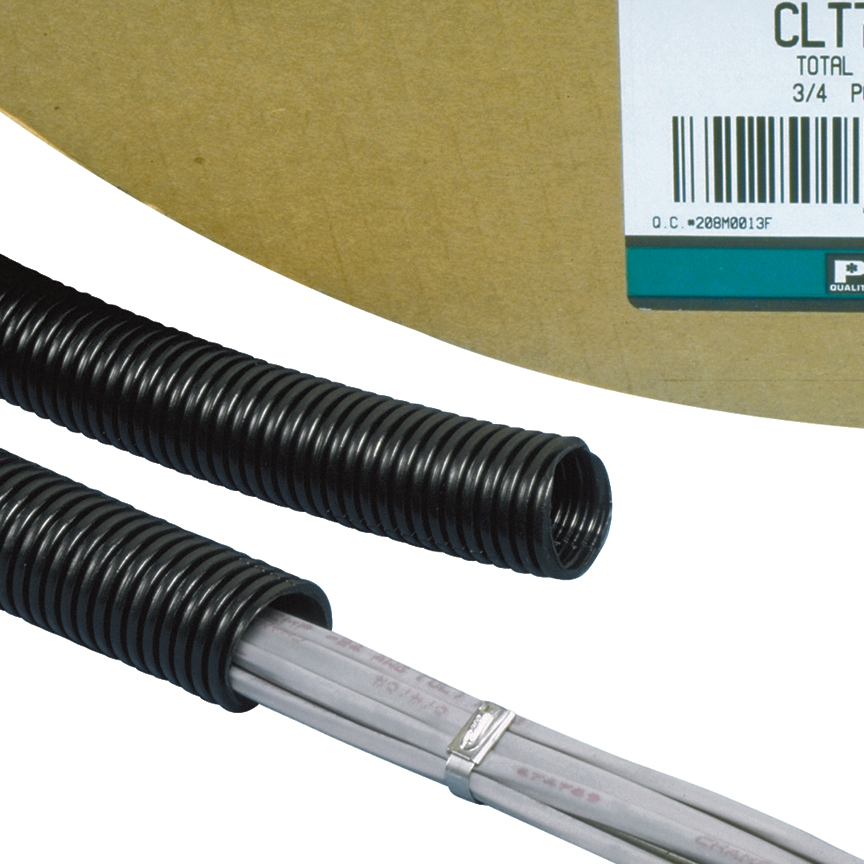

PAN CLTS100F-C3 CLT Solid, 1"x100',
$79.44/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # CLTS100F-C3
North Coast Part # 758733

Specifications

  • UNSPSC: 39131601
  • Product Segment: IEI
  • Application: Provides Protection for Cables, Crush Impact and Abrasion Resistant, Hold in Place with Push Type Cable Ties Adhesive or Push Type Mounts.
  • Product Type: Corrugated Loom Tubing
  • Color: Orange
  • Environment: Indoor
  • Flammability Rating: UL94-HB
  • Inside Diameter (mm): 23.2
  • Inside Diameter (In.): 0.92
  • Material: Polyethylene
  • Resistance Properties: Crush Impact and Abrasion Resistant
  • Maximum Operating Temperature (°C): 50
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Maximum Operating Temperature (°F): 122
  • Nominal Diameter (mm): 25.4
  • Outer Diameter (In.): 1.09
  • Outer Diameter (mm): 27.7
  • Standards Met: RoHS Compliant

Packaging Details

  • UPC: 07498362764
  • GTIN Package: 00074983627646
  • Standard Package Volume Ft3: 2.4761
  • Standard Package Weight Pounds: 7.0500
  • Std Package Height In: 9.4
  • Std Package Height MM: 238.76
  • Std Package Length In: 21.4
  • Std Package Length MM: 543.56
  • Std Package Width In: 21.4
  • Std Package Width MM: 543.56
  • Std. Pkg. UOM: Roll
  • UOM EA PK: EA
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 2.4761
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 543.56
  • Std Ctn Qty: 0
  • Min. Order UOM: Roll
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983627646
  • NLD HS Code: 3917320090000000000000
  • USA HS Code: 3926909985000000000000
  • USA HS Code 10digit: 3926909985
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1

Overview

UPC 07498362764
GTiN 00074983627646
Length 30.5 m
Color Orange
Type Corrugated Loom Tubing
Material Polyethylene
Applications Indoor Use
Country of Origin US
Temperature Rating -40 to 122 F
Pkg Qty 1
Family Brand Name Panduit
Carton Qty 0
Outside Diameter 27.7 mm
Max Operating Temperature 122 degrees F
Inside Diameter 23.2 mm
Min Operating Temperature -40 degrees F
