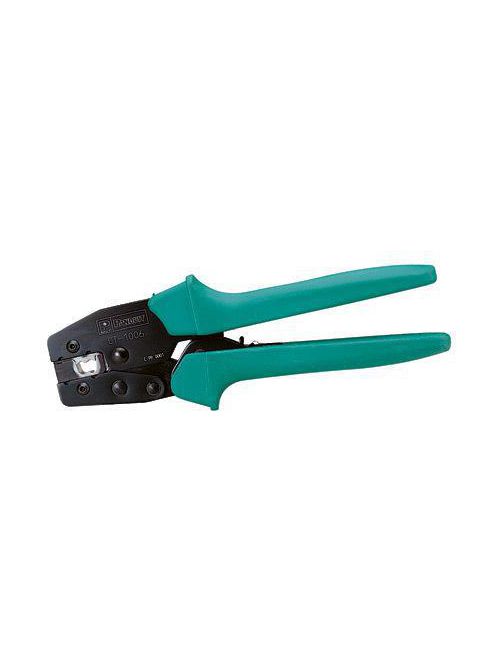

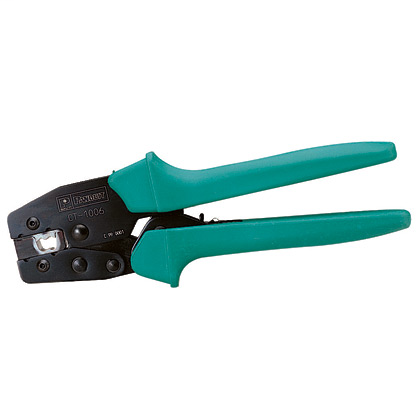

Panduit CT-1006 Controlled Cycle Ferrule Crimp Tool
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # CT-1006
North Coast Part # 821029


  • UNSPSC: 39121409
  • Product Segment: IEI
  • Compatible Connector: NA
  • Tool Type: Controlled Cycle Ferrule Crimping Tool
  • Universal Tool Capabilities: Wire Cutting
  • Maximum Wire Size (AWG): 10
  • Sub Brand: Ferrule Crimp Tool
  • Minimum Wire Size (AWG): 26
  • For Use With: Used to install Single and Dual wire Panduit insulated and non-insulated loose piece ferrules.
  • Includes: Self - adjusting crimp die for insulated and non - insulated ferrules, ferrule size dependent on wire gage. Refer to ferrule packaging for proper ferrule and wire combinations, controlled cycle mechanism prevent tool from opening before crimp cycle is complete. Manual release lever push forward in the event that controlled cycle mechanism must be released Resilient grip to prevent operator fatigue.
  • Connection Type: NA
  • Battery Chemistry: NA
  • Insulated Tool Head: Yes
  • Overall Length (In.): 8.27
  • Overall Length (mm): 210
  • Product Type: Ferrule Crimp Tool
  • Tool Configuration: NA
  • Weight (Kg): 0.3
  • Weight (lb): 0.66
  • Crimp Profile: NA
  • Base Material: Steel

Packaging Details

  • UPC: 07498376439
  • GTIN Package: 00074983764396
  • Standard Package Volume Ft3: 0.0552
  • Standard Package Weight Pounds: 1.6000
  • Std Package Height In: 1.5
  • Std Package Height MM: 38.1
  • Std Package Length In: 12
  • Std Package Length MM: 304.8
  • Std Package Width In: 5.3
  • Std Package Width MM: 134.62
  • Std. Pkg. UOM: Piece
  • Std. Pkg. Qty.: 1
  • Standard Carton Volume Ft3: 0.0552
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 304.8
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: DE
  • RoHS Compliant: RoHS directive is not applicable
  • EAN: 00074983764396
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1


UPC 07498376439
Item Long Description Controlled cycle crimp tool with trapezoid profile for Panduit #1 AWG (50.0mm) insulated and non-insulated ferrules.
GTiN 00074983764396
Type Ferrule Crimp Tool
Applications Pan-Term Ferrules
Country of Origin DE
Wire Size 1 AWG
Pkg Qty 1
Family Brand Name Panduit
Overall Length 8.27 in
CA Prop65 Warning No
UNSPSC 39121409
