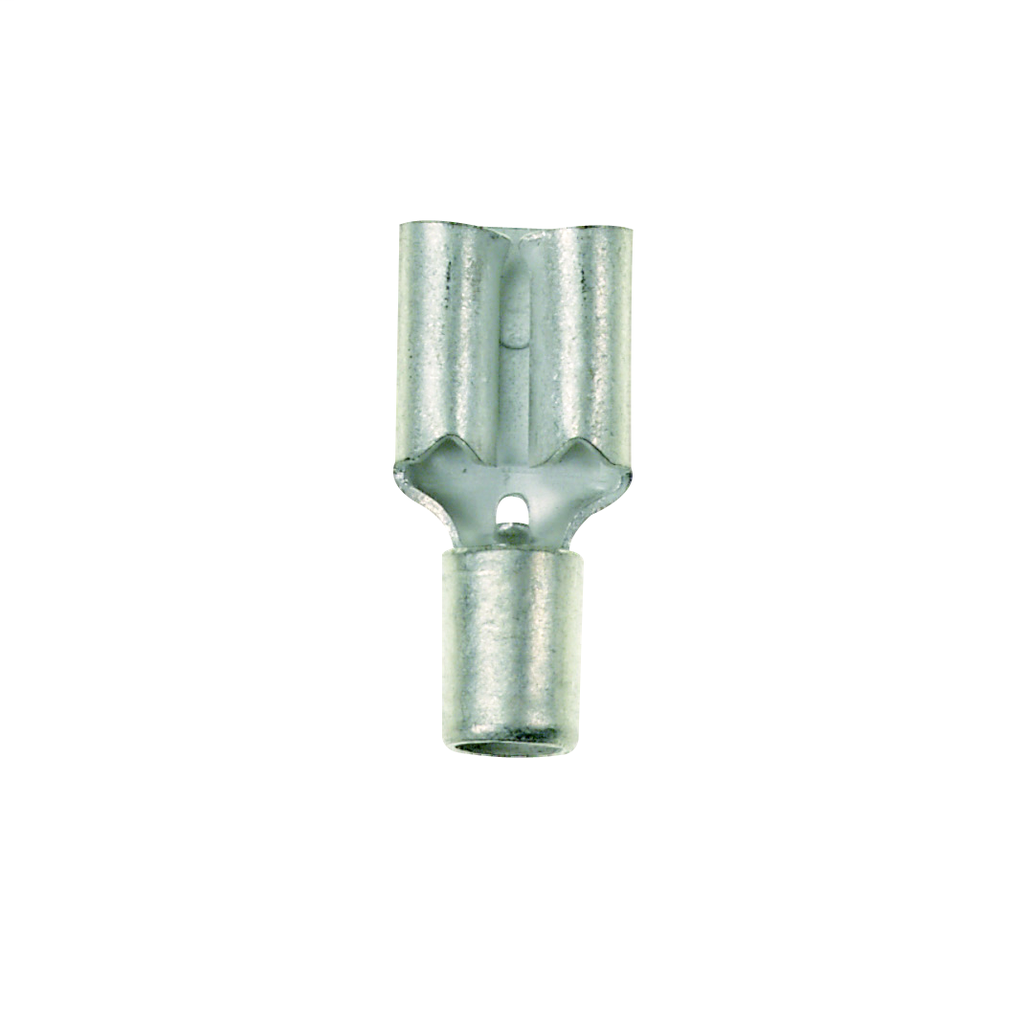

PAN D14-187-C Disconnect,Fm,NIn,.18
$70.59/c (100 ea)
Usually ships within 6 to 10 Days
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # D14-187-C
North Coast Part # 604696

Specifications

  • Length (mm): 14.7
  • Width (mm): 5.8
  • Wire Range: 16 - 14 AWG
  • Tool: CT-100A, CT-200, CT-600-A, CT-1570, CT-2500
  • Width In (mm): 0.23 (5.8)
  • Type: Metal Sleeve
  • Base Material: Brass
  • Flammability Rating: —
  • Order Min Qty Each: 1
  • Order Multiple Quantity Each: 1
  • Sub Brand: Type D
  • Length (In.): 0.58
  • Style: Female Disconnect
  • Length In (mm): 0.58 (14.7)
  • Brand Name: Panduit
  • Packaging Type: Bottle
  • Width (In.): 0.23
  • Height (In.): 0.10
  • Height (mm): 2.5

Packaging Details

  • Ship Pack Packaging Description: BTL
  • Std Package Length MM: 48.26
  • Std Carton Width: 1.8
  • UNSPSC Package UOM: PK
  • Std Package Width: 1.9
  • Std Package Height MM: 91.44
  • UNSPSC Package Description: PACKAGE
  • Std Carton Length: 9.1
  • Sell Pack Packaging Description: BTL
  • Std Carton Height MM: 93.98
  • GTIN Package: 00074983645879
  • Std Package Height: 3.6
  • UNSPSC Carton Description: CARTON
  • UNSPSC Piece Desription: EACH
  • Std Carton Height: 3.7
  • Std Carton Width MM: 45.72
  • Std Carton Length MM: 231.14
  • UNSPSC Piece UOM: EA
  • GTIN Carton: 50074983645874
  • UNSPSC Carton UOM: CT
  • Ship Pkg Qty 1: 1
  • Sell Pkg Qty 1: 1
  • Std Package Width MM: 48.26
  • Std Package Length: 1.9
  • Part Number Full UPC: 7498364587
  • Minimum Order Quantity: 100
  • Standard Package Quantity: 100
  • Stanard Carton Quantity: 500
  • Standard Package Weight: 0.22
  • Standard Carton Weight: 1.1000000000000001

Certifications & Approvals

  • Standards: UL Recognized
  • Certificate of Conformity: N
  • CE Compliant: No
  • ARRA Compliant: Y
  • Cadmium Content Indicator: N
  • California Prop 65 Cancer: N
  • Ozone Depleting Compounds: N
  • MSDS Indicator: N
  • FIFRA Indicator: N
  • CSA Certified: C22.2 No.153
  • UL Recognized: Yes
  • CE Marking: No
  • Buy American Compliant: Y
  • Heavy Metal Content Indicator: N
  • California Prop 65 Reproductive Harm: N
  • Chromium Content Indicator: N
  • ECCN Commodity Code: EAR99
  • Other Heavy Metal Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Lead Content Indicator: N
  • RoHS Compliancy Status: Compliant

Additional Specifications

  • UOM EA Pk: PK
  • MSDS Doc Name: N
  • Barrel Configuration: Standard
  • Max. Insulation Diameter In. (mm): —
  • Wire Range In. (mm²): 16 - 14 AWG (1.5 - 2.5)
  • Max. Voltage Rating: 2000V
  • Suggested Index Terms: Terminal, Connector, Female, Receptacle, Disconnect, Solderless, Crimp
  • Master Pack Quantity: 5
  • Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
  • CA9 Series Crimp Die: —
  • Wire Strip Length In. (mm): 9/32" (.2812) (7.1)
  • Barrel Type: Sleeved Barrel
  • Pieces Per Reel: —
  • Product Group Assignment: Terminals
  • Parts Available: N
  • Tab Size In. (mm): 0.187 x 0.032 (4.8 x 0.8)
  • Unit Volume: .00007
  • UNSPSC: 39121409
  • Insulation: Non-Insulated
  • NMFC Rate: 70
  • Gross Volume UOM: CU
  • Mercury Content Indicator: N
  • Model (Design): Sleeve
  • Wire Range (mm²): 1.5 - 2.5
  • Unit Weight: .0022
  • Plating Type: Tinned
  • Tab Size (In.): 0.187 x 0.032
  • CA-800/EZ Series Crimp Die: —
  • Master Pack Packaging Description: PKG
  • For Export: Y
  • Part Number Series: D
  • Country of Origin Description: Mexico
  • Country of Origin 2Digit: MX
  • Hazardous Material Flag: N
  • Tab Size (mm): 4.7 x 0.8
  • Lowest Level UOM: EA
  • Panduit Color Code: Metallic

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

Categories

Overview

UPC 07498364587
GTiN 00074983645879
Length .58 in
Finish Tinned
Width .23 in
Type Loose Piece Disconnect
Barrel Type Sleeved Barrel
Insulation Type Non-Insulated
Material Brass
Height .1 in
Country of Origin MX
Wire Size 14 AWG
Base Material Brass
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.58 in
Max Voltage 2000 V
Color Coding Metallic
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
UNSPSC 39121409
