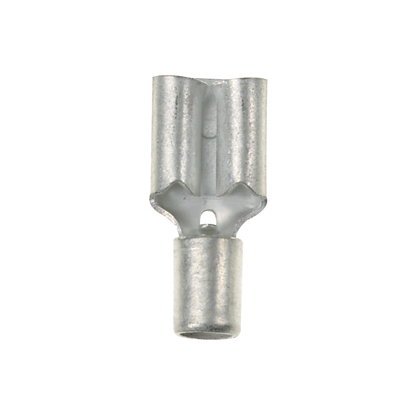

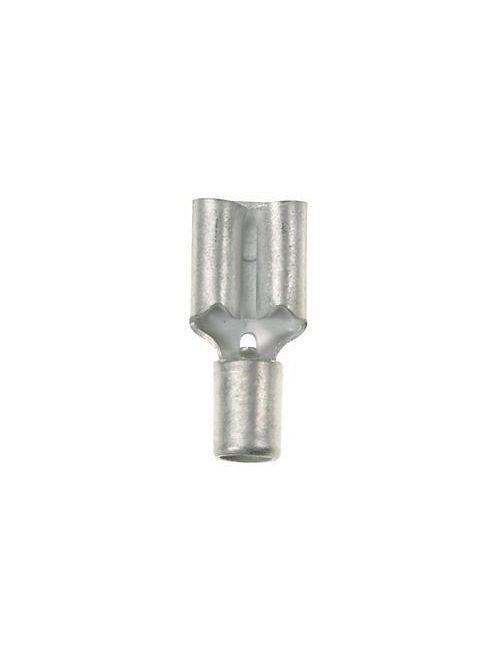

PAN D18-187-C Disconnect,Fm,NIn,.18
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$72.03/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # D18-187-C
North Coast Part # 601269

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Female Disconnect
  • Insulation Material: Non-Insulated
  • Minimum Wire Size (AWG): #22
  • Maximum Copper Conductor Size (AWG): #18
  • Maximum Wire Size (AWG): #18
  • Minimum Copper Conductor Size (AWG): #22
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.19
  • Tab Size (mm): 4.8
  • Standards Met: UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 , C22.2 No.153
  • Maximum Voltage (V): 2000
  • Base Material: Brass
  • Finish/Coating: Tinned
  • Color Code: Metallic
  • Barrel Type: Sleeved Barrel
  • Flammability Rating: NA
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Sub Brand: Pan-Term
  • Overall Height (In.): 0.1
  • Overall Height (mm): 2.5
  • Overall Length (mm): 14.7
  • Overall Length (In.): 0.58
  • Overall Thickness (mm): 0.4
  • Overall Thickness (In.): 0.16
  • Overall Width (In.): 0.23
  • Overall Width (mm): 5.8
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-100, CT-100A, CT-200, CT-570, CT-600,-A(D10-250 ONLY), CT-1570, CT-2457CH, CT-2500, CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2457CH, CT-2500, CT-160, Ct-260
  • Maximum Voltage (kV): 2

Packaging Details

  • UPC: 07498364585
  • GTIN Package: 00074983645855
  • Standard Package Volume Ft3: 0.0071
  • Standard Package Weight Pounds: 0.2100
  • Std Package Height In: 3.6
  • Std Package Height MM: 91.44
  • Std Package Length In: 1.9
  • Std Package Length MM: 48.26
  • Std Package Width In: 1.9
  • Std Package Width MM: 48.26
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983645850
  • Standard Carton Volume Ft3: 0.0071
  • Standard Carton Weight Pounds: 1.0500
  • Std Carton Height In: 3.5
  • Std Carton Height MM: 88.9
  • Std Carton Length In: 9.2
  • Std Carton Length MM: 48.26
  • Std Carton Width In: 1.9
  • Std Carton Width MM: 48.26
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983645855
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498364585
Item Long Description Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping. Barrel of terminal internally beveled to provide quick and easy wire insertion. Internal barrel serrations assure good wire contact and maximum tensile strength. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. Maximum recommended operating temperature 302 Degrees Fahrenheit (150 Degrees Celsius). UL and CSA rated up to 2000 Volts per UL 310.
GTiN 00074983645855
Finish Tinned
Width 0.23 in
Type Loose Piece Disconnect
Barrel Type Sleeved Barrel
Material Brass
Height 0.1 in
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.58 in
Color Coding Metallic
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 2,000 Volt
UNSPSC 39121409
