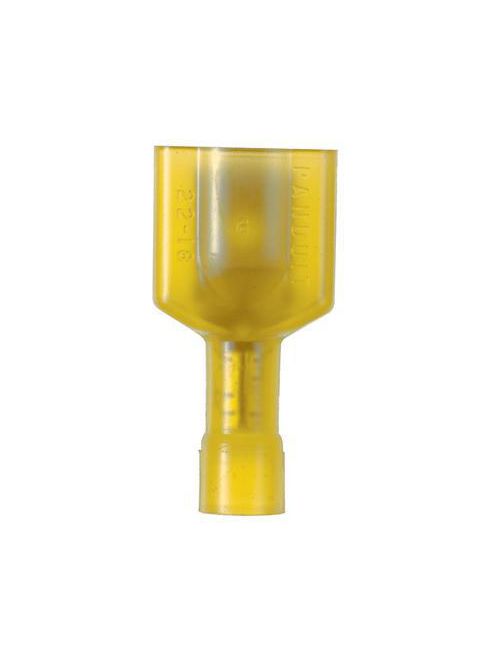

Panduit DNF10-250FIMB-Q Nylon Fully Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$104.98/c (100 ea)
Usually ships within 6 to 10 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF10-250FIMB-Q
North Coast Part # 684356

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Note: DNF10-250FIMB-Q replaces DNF10-250FIMB-L
  • Disconnect Type: Female Disconnect
  • Insulation Type: Nylon Fully Insulated
  • Insulation Material: Nylon-Fully Insulated
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Minimum Copper Conductor Size (AWG): #12
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.25
  • Tab Size (mm): 6.3
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Nickel-Plated
  • Base Material: Copper
  • Color Code: Yellow
  • Flammability Rating: HB
  • Insulation Diameter (In.): 0.22
  • Insulation Diameter (mm): 5.6
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.22
  • Maximum Wire Insulation Diameter (mm): 5.6
  • Overall Height (In.): 0.36
  • Overall Height (mm): 9.1
  • Overall Length (mm): 24.4
  • Overall Length (In.): 0.96
  • Overall Width (mm): 11.4
  • Overall Width (In.): 0.45
  • Seam Type: Butted
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-600-A, CT-1550, CT-1551, CT-2500
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498311902
  • GTIN Package: 00074983119028
  • Standard Package Volume Ft3: 0.0099
  • Standard Package Weight Pounds: 0.1275
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.35
  • Std Package Length MM: 110.49
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50074983119023
  • Standard Carton Volume Ft3: 0.0099
  • Standard Carton Weight Pounds: 0.6375
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 9.85
  • Std Carton Length MM: 110.49
  • Std Carton Width In: 2.25
  • Std Carton Width MM: 57.15
  • Std Ctn Qty: 125
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983119028
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: Y
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Overview

UPC 07498311902
GTiN 00074983119028
Finish Nickel
Width 0.45 in
Color Yellow
Type Loose-Piece
Barrel Type Butted Seam
Material Copper
Height 0.36 in
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 25
Family Brand Name Panduit
Carton Qty 125
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.96 in
Color Coding Yellow
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
UNSPSC 39121409
Conductor Size 12-10 AWG
Tab Size 1/4 x 0.032 in
Insulation Material Nylon
