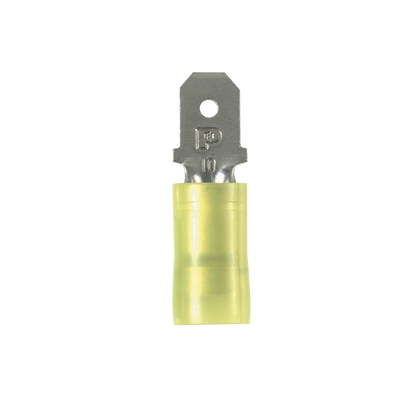

Panduit DNF10-250M-L Nylon Barrel Insulated Male Disconnect
$141.18/c (100 ea)
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF10-250M-L
North Coast Part # 604697

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Male Tab Disconnect
  • Insulation Material: Nylon-Fully Insulated
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Minimum Copper Conductor Size (AWG): #12
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (mm): 6.3
  • Tab Size (In.): 0.25
  • Maximum Voltage (V): 600
  • Finish/Coating: Nickel
  • Base Material: Copper
  • Color Code: Yellow
  • Barrel Type: Insulation Grip Sleeve
  • Flammability Rating: HB
  • Insulation Diameter (mm): 5.8
  • Insulation Diameter (In.): 0.23
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Overall Height (mm): 8.1
  • Overall Height (In.): 0.03
  • Overall Length (In.): 1.03
  • Overall Length (mm): 26.2
  • Overall Thickness (In.): 0.03
  • Overall Thickness (mm): 8.1
  • Overall Width (mm): 6.4
  • Overall Width (In.): 0.25
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-100, CT-1550, CT-1551, CT-160,CT-260
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382771
  • GTIN Package: 00074983827718
  • Standard Package Volume Ft3: 0.0063
  • Standard Package Weight Pounds: 0.2600
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983827713
  • Standard Carton Volume Ft3: 0.0063
  • Standard Carton Weight Pounds: 2.6000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.6
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.1
  • Std Carton Width MM: 104.14
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983827718
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498382771
GTiN 00074983827718
Finish Nickel
Width 0.25 in
Color Yellow
Type Loose Piece Disconnects
Barrel Type Insulation Grip Sleeve
Material Copper
Height 0.03 in
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 1.03 in
Color Coding Yellow
Sub Brand Pan-Term
Voltage null
