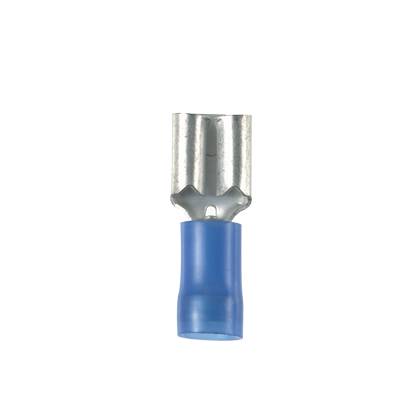

Panduit DNF14-110-C Nylon Barrel Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$107.65/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF14-110-C
North Coast Part # 601270

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Female Disconnect
  • Insulation Material: Nylon-Fully Insulated
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Wire Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (mm): 2.8
  • Tab Size (In.): 0.11
  • Maximum Voltage (V): 300
  • Base Material: Brass
  • Finish/Coating: Tinned
  • Color Code: Blue
  • Barrel Type: Insulation Grip Sleeve
  • Flammability Rating: HB
  • Insulation Diameter (mm): 4.1
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°F): 194
  • Maximum Operating Temperature (°C): 90
  • Maximum Wire Insulation Diameter (mm): 4.12
  • Maximum Wire Insulation Diameter (In.): 0.162
  • Overall Height (In.): 0.08
  • Overall Height (mm): 2
  • Overall Length (In.): 0.75
  • Overall Length (mm): 19.1
  • Overall Thickness (mm): 0.2
  • Overall Thickness (In.): 0.1
  • Overall Width (In.): 0.15
  • Overall Width (mm): 3.8
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-500, CT-160, CT-1550, CT-1551
  • Maximum Voltage (kV): 0.3

Packaging Details

  • UPC: 07498382650
  • GTIN Package: 00074983826506
  • Standard Package Volume Ft3: 0.0064
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983826501
  • Standard Carton Volume Ft3: 0.0064
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 3.65
  • Std Carton Height MM: 92.71
  • Std Carton Length In: 9.5
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 2.1
  • Std Carton Width MM: 53.34
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826506
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498382650
GTiN 00074983826506
Finish Tinned
Width 0.15 in
Color Blue
Type Loose Piece Disconnects
Barrel Type Insulation Grip Sleeve
Material Brass
Height 0.08 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 194 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 194 degrees F
Overall Length 0.75 in
Color Coding Blue
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
