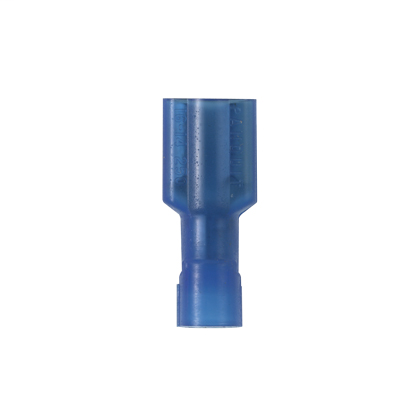

PAN DNF14-188FIB-M Disc,F,BlNy,.187
$396.75/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF14-188FIB-M
North Coast Part # 821748

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Female Disconnect
  • Insulation Material: Nylon - Barrel Insulated
  • Minimum Wire Size (AWG): #16
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.19
  • Tab Size (mm): 4.8
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tinned
  • Base Material: Brass
  • Color Code: Blue
  • Flammability Rating: HB
  • Insulation Diameter (In.): 0.16
  • Insulation Diameter (mm): 4.1
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Sub Brand: Pan-Term
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Overall Height (In.): 0.18
  • Overall Height (mm): 4.6
  • Overall Length (In.): 0.78
  • Overall Length (mm): 19.8
  • Overall Width (mm): 7.4
  • Overall Width (In.): 0.29
  • Seam Type: Butted
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For use with: CT-1525, CT-2500 (CT-2500CH), CT-100A, CT-160, CT-260, CT-600A, (CT-520CH)
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498375985
  • GTIN Package: 00074983759859
  • Standard Package Volume Ft3: 0.0641
  • Standard Package Weight Pounds: 2.4000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 8.1
  • Std Package Length MM: 205.74
  • Std Package Width In: 4.4
  • Std Package Width MM: 111.76
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0641
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 205.74
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983759859
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: Y
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498375985
GTiN 00074983759859
Finish Tin Plated
Width 0.29 in
Color Blue
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Height 0.18 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.78 in
Color Coding Blue
Sub Brand Pan-Term
CA Prop65 Warning No
Conductor Size 16-14 AWG
Tab Size 0.187 x 0.02 in
Insulation Material Nylon
Voltage null
UNSPSC 39121409
