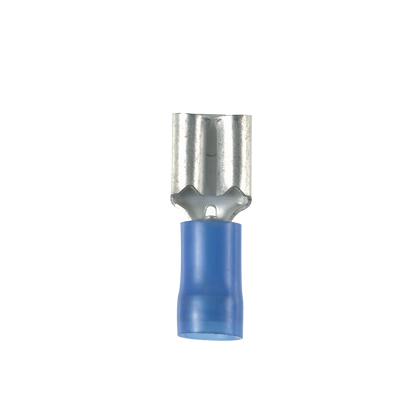

PAN DNF14-205-C Disc,F,BlNy,.187 x

$122.12/c (100 ea)

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UNSPSC: 39121409
Product Segment: IEI
Disconnect Type: Female Disconnect
Insulation Material: Nylon - Barrel Insulated
Minimum Wire Size (AWG): #16
Maximum Wire Size (AWG): #14
Maximum Copper Conductor Size (AWG): #14
Minimum Copper Conductor Size (AWG): #16
Wire Strip Length (mm): 7.1
Wire Strip Length (In.): 0.28
Tab Size (mm): 4.8
Tab Size (In.): 0.19
Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V): 300
Base Material: Brass
Finish/Coating: Tinned
Color Code: Blue
Barrel Type: Grip Sleeve
Flammability Rating: HB
Insulation Diameter (In.): 0.16
Insulation Diameter (mm): 4.1
Sub Brand: Pan-Term
Maximum Operating Temperature (°C): 90
Maximum Operating Temperature (°F): 194
Maximum Wire Insulation Diameter (In.): 0.162
Maximum Wire Insulation Diameter (mm): 4.12
Overall Height (mm): 3
Overall Height (In.): 0.12
Overall Length (In.): 0.76
Overall Length (mm): 19.3
Overall Thickness (In.): 0.16
Overall Thickness (mm): 0.4
Overall Width (mm): 6.4
Overall Width (In.): 0.25
Packaging Type: Bottle
Product Type: Loose Piece Disconnect
For Use With: CT-500, CT-100, CT-160, CT-260, CT-400, CT-460, CT-550, CT-1550, CT-1551
Maximum Voltage (kV): 0.3

UPC	07498382644
Item Long Description	The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
GTiN	00074983826445
Finish	Tinned
Width	0.25 in
Color	Blue
Type	Loose Piece Disconnect
Barrel Type	Grip Sleeve
Material	Brass
Height	0.12 in
Country of Origin	MX
Wire Size	14
Temperature Rating	194 F
Pkg Qty	100
Family Brand Name	Panduit
TC Connection	Funnel Entry
Max Operating Temperature	194 degrees F
Overall Length	0.76 in
Color Coding	Blue
Sub Brand	Pan-Term
Voltage	300 Volt
UNSPSC	39121409
