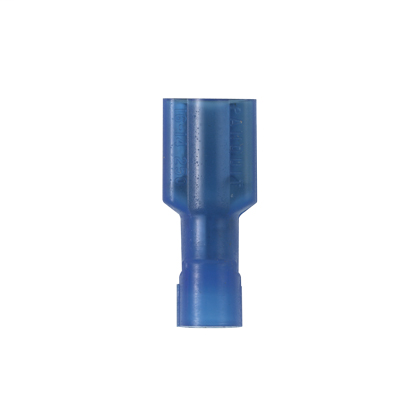

PAN DNF14-205FIB-C Disc,F,BlNy,.205
$105.51/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF14-205FIB-C
North Coast Part # 604700

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Material: Nylon - Barrel Insulated
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Tab Size (In.): 0.19
  • Tab Size (mm): 4.8
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tinned
  • Base Material: Brass
  • Color Code: Blue
  • Barrel Type: Butted Seam
  • Flammability Rating: HB
  • Insulation Diameter (mm): 4.1
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Overall Height (In.): 0.22
  • Overall Height (mm): 5.6
  • Overall Length (In.): 0.84
  • Overall Length (mm): 21.3
  • Overall Width (In.): 0.35
  • Overall Width (mm): 8.9
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1525, CT-2500 (CT-2500CH), CT-100A, CT-160, CT-260, CT-600A, (CT-520CH)
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382669
  • GTIN Package: 00074983826698
  • Standard Package Volume Ft3: 0.0063
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.35
  • Std Package Length MM: 110.49
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983826693
  • Standard Carton Volume Ft3: 0.0063
  • Standard Carton Weight Pounds: 2.4000
  • Std Carton Height In: 4.45
  • Std Carton Height MM: 113.03
  • Std Carton Length In: 10.35
  • Std Carton Length MM: 110.49
  • Std Carton Width In: 4.4
  • Std Carton Width MM: 111.76
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826698
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498382669
GTiN 00074983826698
Finish Tinned
Width 0.35 in
Color Blue
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Height 0.22 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 1000
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.84 in
Color Coding Blue
Sub Brand Pan-Term
Voltage null
