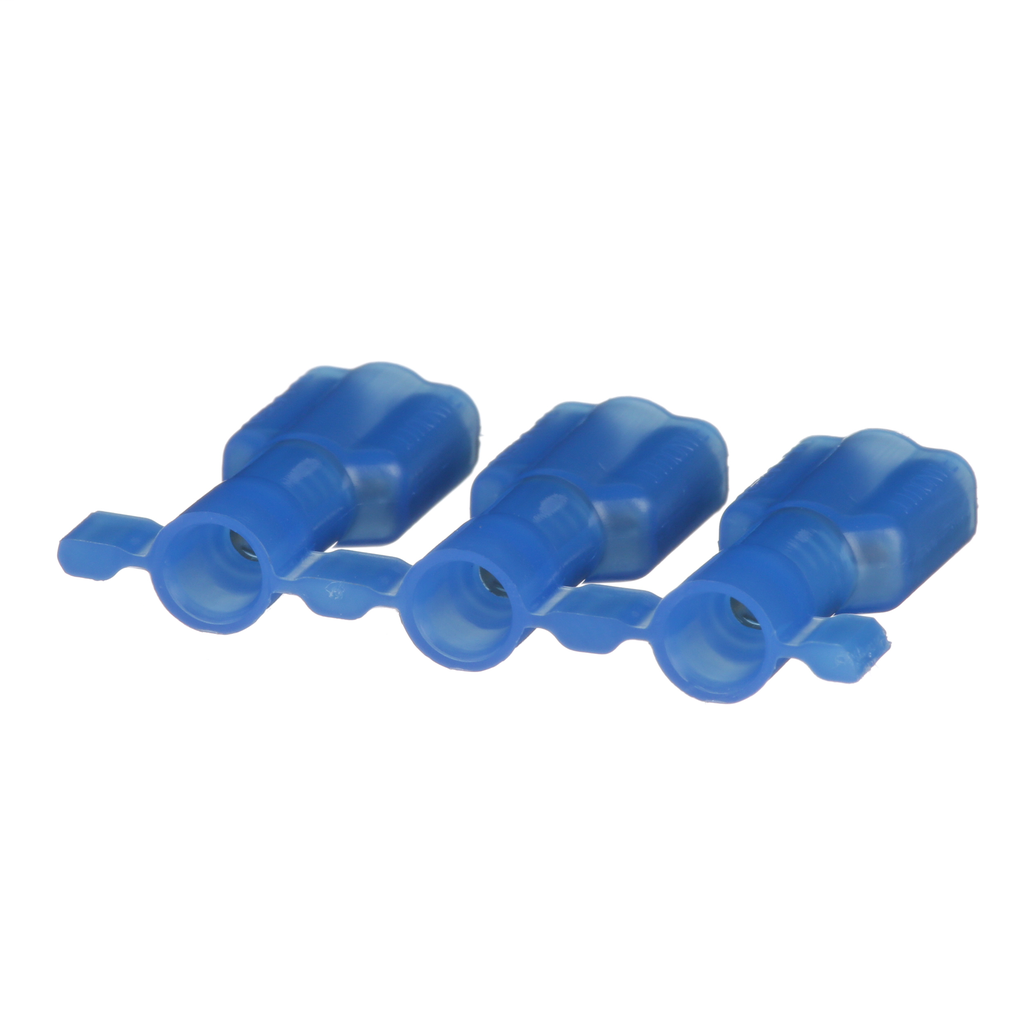

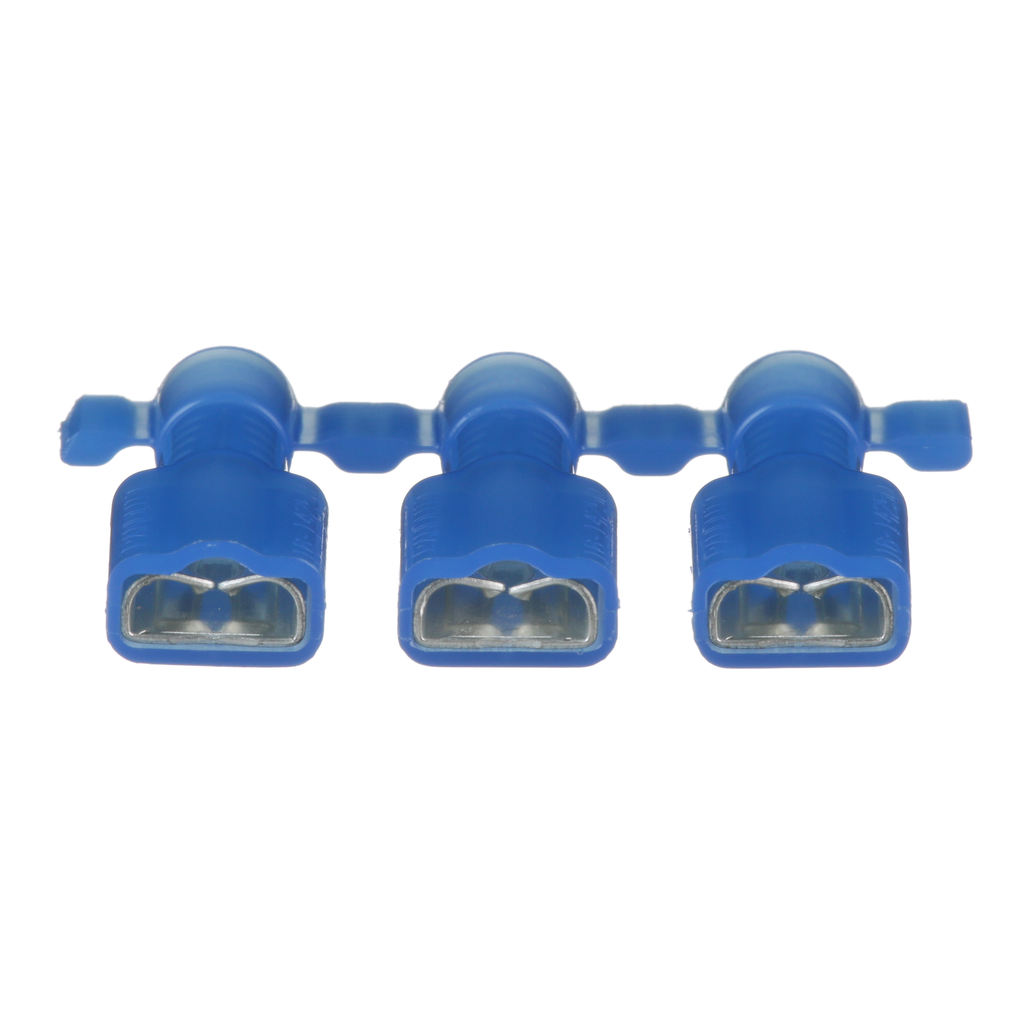

Panduit DNF14-250FIB-3K Nylon Fully Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$268.67/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF14-250FIB-3K
North Coast Part # 665984

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Minimum Wire Size (AWG): #16
  • Maximum Wire Size (AWG): #14
  • Wire Strip Length (In.): 9/32
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.250 x 0.032
  • Tab Size (mm): 6.3 x 0.8
  • Standards Met: UL 310, CSA 22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Brass
  • Color Code: Blue
  • Barrel Type: Funnel
  • Flammability Rating: UL94-HB
  • Sub Brand: Reel Smart™
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.06
  • Overall Height (mm): 5.6
  • Overall Height (In.): 0.22
  • Overall Length (mm): 21.3
  • Overall Length (In.): 0.84
  • Overall Width (In.): 0.35
  • Overall Width (mm): 8.9
  • Tongue Angle: Straight
  • Packaging Type: Reel
  • Product Type: Disconnects on a Reel
  • For Use With: Crimp press with CA9 (CD9-5A) or CA-800EZ (CD-800-5) applicator
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382693
  • GTIN Package: 00074983826933
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 10.5000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826933
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3,000

Categories

Overview

UPC 07498382693
Item Long Description The DNF14-250FIB-3K Reel Smart Disconnect is a continuously molded and fully insulated female disconnect with a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wire stop assures proper wire insertion length into the terminal barrel for a higher quality connection, and the funnel entry allows for faster wire insertion and lower installed cost.
GTiN 00074983826933
Finish Tin Plated
Width 0.35 in
Color Blue
Type Insulated
Barrel Type Butted Seam
Material Brass
Height 0.22 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.84 in
Color Coding Blue
Sub Brand Reel Smart
Conductor Size 16-14 AWG
Tab Size 1/4 in x 0.032 in
Insulation Material Nylon
Voltage 600 Volt
