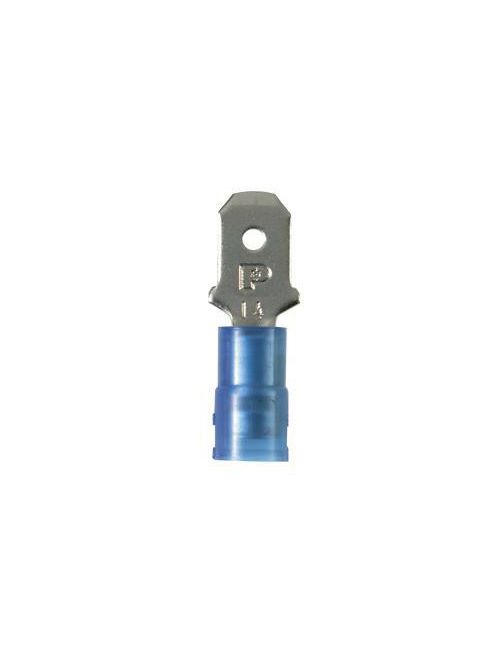

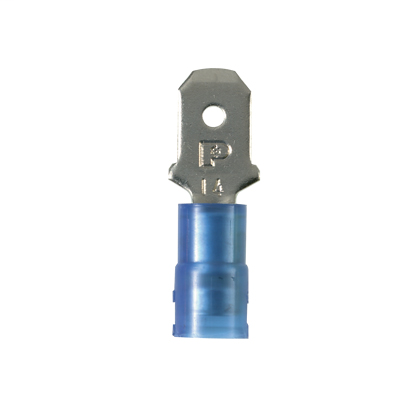

Panduit DNF14-250M-M Nylon Barrel Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$389.56/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF14-250M-M
North Coast Part # 604702

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Male Tab Disconnect
  • Insulation Material: Nylon - Barrel Insulated
  • Minimum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Wire Size (AWG): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.25
  • Tab Size (mm): 6.3
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Nickel
  • Base Material: Copper
  • Color Code: Blue
  • Barrel Type: Grip Sleeve
  • Flammability Rating: HB
  • Insulation Diameter (mm): 4.1
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°F): 221
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Overall Height (In.): 0.03
  • Overall Height (mm): 0.8
  • Overall Length (mm): 22.9
  • Overall Length (In.): 0.9
  • Overall Thickness (In.): 0.03
  • Overall Thickness (mm): 0.8
  • Overall Width (In.): 0.25
  • Overall Width (mm): 6.4
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-100, CT-1550, CT-1551, CT-160,CT-260
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382734
  • GTIN Package: 00074983827343
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 2.9000
  • Std Package Height In: 3.3
  • Std Package Height MM: 83.82
  • Std Package Length In: 7.1
  • Std Package Length MM: 180.34
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 180.34
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983827343
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 660,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 1,914.0000

Overview

UPC 07498382734
Item Long Description Male Disconnect, nylon barrel insulated, 16 - 14 AWG, .250 x .032 tab size, funnel entry
GTiN 00074983827343
Finish Nickel
Width 0.25 in
Color Blue
Type Loose Piece Disconnect
Barrel Type Grip Sleeve
Material Copper
Height 0.03 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.9 in
Color Coding Blue
Sub Brand Pan-Term
Voltage 600 Volt
UNSPSC 39121409
