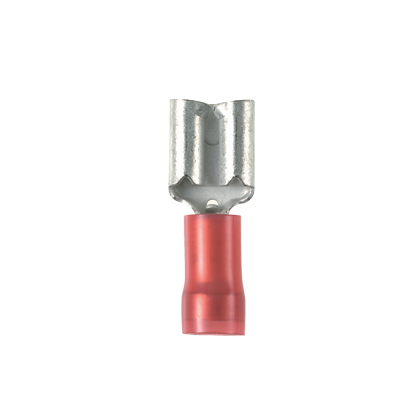

Panduit DNF18-111-M Nylon Barrel Insulated Female Disconnect
$517.52/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF18-111-M
North Coast Part # 676506

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Maximum Wire Size (AWG): #22
  • Minimum Wire Size (AWG): #18
  • Maximum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG): #18
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.11
  • Tab Size (mm): 2.8
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 300
  • Base Material: Brass
  • Finish/Coating: Tinned
  • Color Code: Red
  • Barrel Type: Grip Sleeve
  • Flammability Rating: HB
  • Insulation Diameter (In.): 0.1
  • Insulation Diameter (mm): 2.5
  • Maximum Operating Temperature (°C): 90
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°F): 194
  • Maximum Wire Insulation Diameter (In.): 0.1
  • Maximum Wire Insulation Diameter (mm): 2.5
  • Overall Height (In.): 0.07
  • Overall Height (mm): 1.8
  • Overall Length (mm): 17.5
  • Overall Length (In.): 0.69
  • Overall Thickness (mm): 2.5
  • Overall Thickness (In.): 0.1
  • Overall Width (mm): 3.8
  • Overall Width (In.): 0.15
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For use with: CT-1525 (A-Pocket), CT-2500/L (CT-2525CH) (A-Pocket)
  • Maximum Voltage (kV): 0.3

Packaging Details

  • UPC: 07498382707
  • GTIN Package: 00074983827077
  • Standard Package Volume Ft3: 0.2642
  • Standard Package Weight Pounds: 1.1000
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 5.1
  • Std Package Length MM: 129.54
  • Std Package Width In: 3.65
  • Std Package Width MM: 92.71
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.2642
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 129.54
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983827077
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498382707
GTiN 00074983827077
Finish Tinned
Width 0.15 in
Color Red
Type Loose Piece Disconnect
Barrel Type Grip Sleeve
Material Brass
Height 0.07 in
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 194 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 194 degrees F
Overall Length 0.69 in
Color Coding Red
Sub Brand Pan-Term
Voltage null
