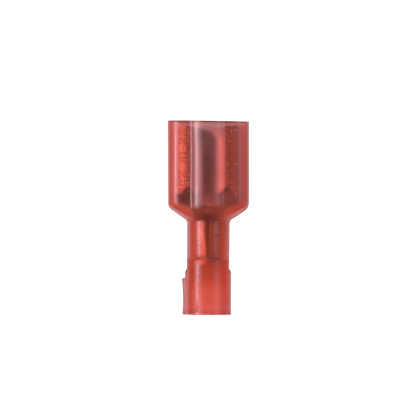

Panduit DNF18-187FIB-M Nylon Fully Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$351.85/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF18-187FIB-M
North Coast Part # 1679538

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Material: Nylon - Barrel Insulated
  • Maximum Copper Conductor Size (AWG): #22
  • Maximum Wire Size (AWG): #22
  • Minimum Wire Size (AWG): #18
  • Minimum Copper Conductor Size (AWG): #18
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.19
  • Tab Size (mm): 4.8
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Base Material: Brass
  • Finish/Coating: Tinned
  • Color Code: Red
  • Flammability Rating: HB
  • Insulation Diameter (mm): 3.5
  • Insulation Diameter (In.): 0.14
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.14
  • Maximum Wire Insulation Diameter (mm): 3.4
  • Overall Height (mm): 4.6
  • Overall Height (In.): 0.18
  • Overall Length (mm): 19.8
  • Overall Length (In.): 0.78
  • Overall Width (In.): 0.29
  • Overall Width (mm): 7.4
  • Seam Type: Butted
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1525, CT-2500 (CT-2520CH), CT-100A, CT-160, CT-260, CT-600A, (CT-520CH)
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498375982
  • GTIN Package: 00074983759828
  • Standard Package Volume Ft3: 0.0641
  • Standard Package Weight Pounds: 1.9000
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 8.2
  • Std Package Length MM: 208.28
  • Std Package Width In: 4.35
  • Std Package Width MM: 110.49
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0641
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 208.28
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983759828
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: Y
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498375982
Item Long Description The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
GTiN 00074983759828
Finish Tinned
Width 0.29 in
Color Red
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Height 0.18 in
Country of Origin MX
Wire Size 22
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.78 in
Color Coding Red
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
UNSPSC 39121409
