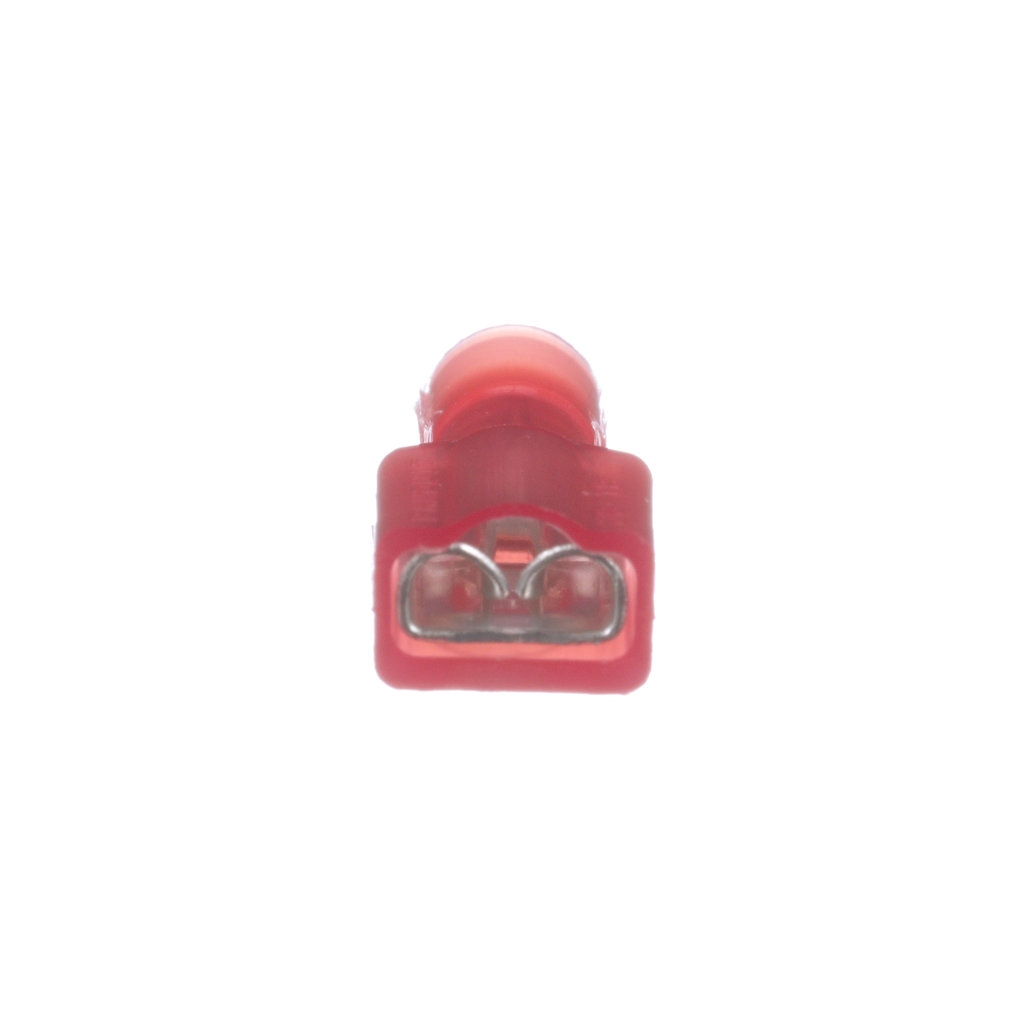

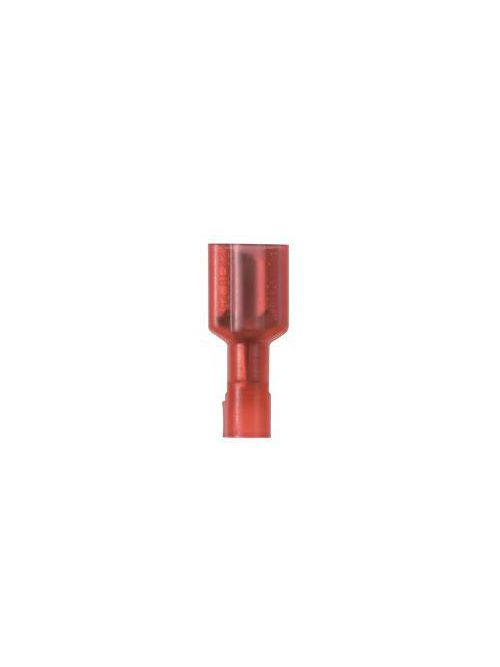

Panduit DNF18-206FIB-M Nylon Fully Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$374.03/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF18-206FIB-M
North Coast Part # 762981

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Type: Fully Insulated
  • Insulation Material: Nylon
  • Maximum Wire Size (AWG): #18
  • Minimum Wire Size (AWG): #22
  • Wire Strip Length (In.): 9/32
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.205/0.187 x 0.020
  • Tab Size (mm): 5.2/4.8 x 0.5
  • Standards Met: UL 310, CSA 22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Brass
  • Color Code: Red
  • Barrel Type: Funnel
  • Flammability Rating: UL94-HB
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Sub Brand: Pan-Term®
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1
  • Maximum Wire Insulation Diameter (In.): 0.14
  • Maximum Wire Insulation Diameter (mm): 3.6
  • Overall Height (mm): 5.6
  • Overall Height (In.): 0.22
  • Overall Length (mm): 19.8
  • Overall Length (In.): 0.78
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Angle: Straight
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1525, CT-2500/L (CT-2525CH)
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382668
  • GTIN Package: 00074983826681
  • Standard Package Volume Ft3: 0.5261
  • Standard Package Weight Pounds: 2.1000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.4
  • Std Package Width MM: 111.76
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.5261
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826681
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 480,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 1,008.0000

Categories

Overview

UPC 07498382668
Item Long Description The DNF18-206FIB-M Pan-Term Disconnect is a fully insulated female disconnect with a funnel entry. The internal wire stop assures proper wire insertion length for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength. Funnel entry design allows for faster wire insertion and lower installed cost.
GTiN 00074983826681
Finish Tinned
Width 0.31 in
Color Red
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Height 0.22 in
Country of Origin MX
Wire Size 22
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.78 in
Color Coding Red
Sub Brand Pan-Term
Voltage 600 Volt
