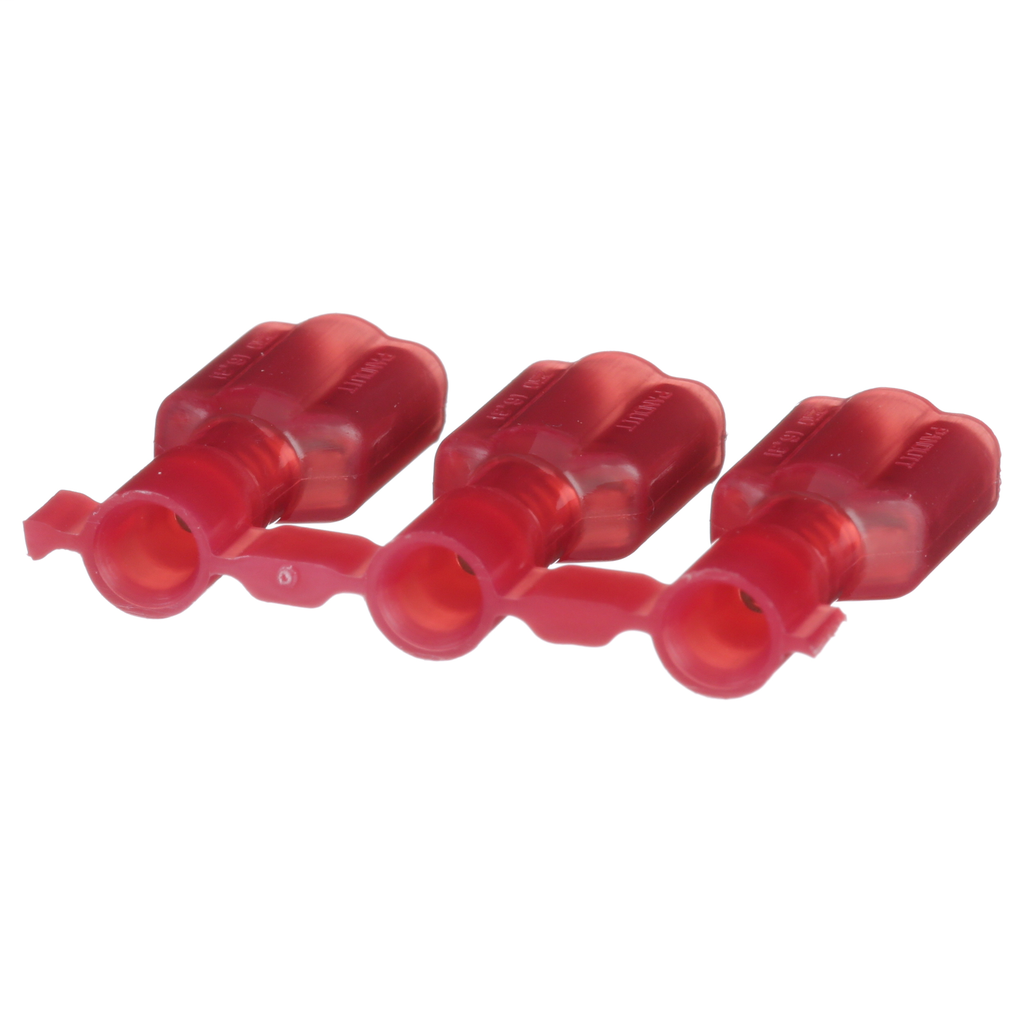

PAN DNF18-250FIB-3K Panduit DNF18-2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$285.77/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 3000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNF18-250FIB-3K
North Coast Part # 665985

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Minimum Wire Size (AWG): #22
  • Maximum Wire Size (AWG): #18
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 9/32
  • Tab Size (mm): 6.3 x 0.8
  • Tab Size (In.): 0.250 x 0.032
  • Standards Met: UL 310, CSA 22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Brass
  • Color Code: Red
  • Barrel Type: Funnel
  • Flammability Rating: UL94-HB
  • Maximum Operating Temperature (°F): 221
  • Sub Brand: Reel Smart™
  • Maximum Operating Temperature (°C): 105
  • Maximum Metric Conductor Size (mm²): 1
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Wire Insulation Diameter (mm): 3.45
  • Maximum Wire Insulation Diameter (In.): 0.136
  • Overall Height (In.): 0.22
  • Overall Height (mm): 5.6
  • Overall Length (In.): 0.84
  • Overall Length (mm): 21.3
  • Overall Width (In.): 0.35
  • Overall Width (mm): 8.9
  • Tongue Angle: Straight
  • Packaging Type: Reel
  • Product Type: Disconnects on a Reel
  • For use with: Crimp press with CA9 (CD9-4A) or CA-800EZ (CD-800-4) applicator
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382690
  • GTIN Package: 00074983826902
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 9.9000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826902
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 3000

Categories

Overview

UPC 07498382690
GTiN 00074983826902
Finish Tinned
Width 0.35 in
Color Red
Type Disconnects On A Reel
Barrel Type Butted Seam
Material Brass
Height 0.22 in
Country of Origin MX
Wire Size 22-16 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.84 in
Color Coding Red
Sub Brand Reel Smart
CA Prop65 Warning No
Voltage null
