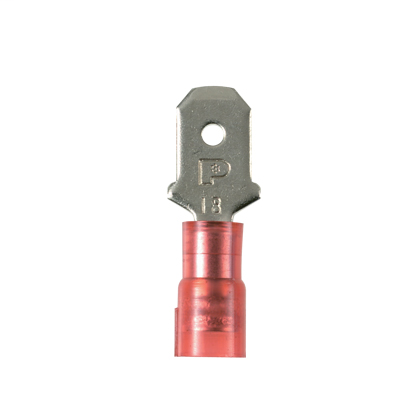

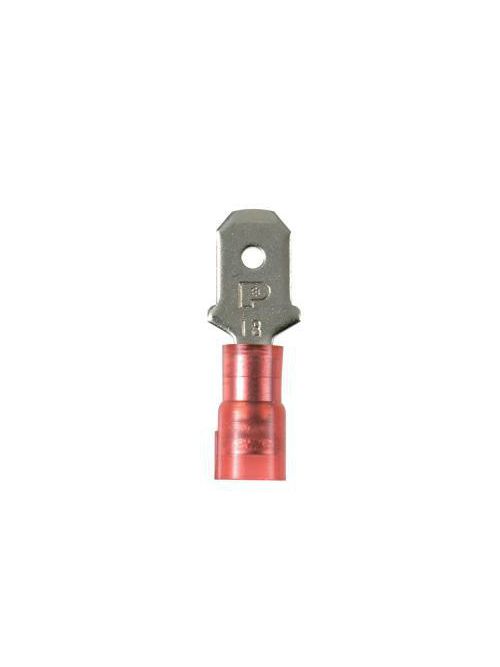

Panduit DNF18-250M-C Nylon Barrel Insulated Male Disconnect

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Disconnect Type: Male Tab Disconnect
• Insulation Material: Nylon - Barrel Insulated
• Maximum Copper Conductor Size (AWG): #22
• Maximum Wire Size (AWG): #22
• Minimum Wire Size (AWG): #18
• Minimum Copper Conductor Size (AWG): #18
• Wire Strip Length (mm): 7.1
• Wire Strip Length (In.): 0.28
• Tab Size (mm): 6.3
• Tab Size (In.): 0.25
• Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
• Maximum Voltage (V): 600
• Finish/Coating: Nickel
• Base Material: Copper
• Color Code: Red
• Barrel Type: Insulation Grip Sleeve
• Flammability Rating: HB
• Insulation Diameter (mm): 3.5
• Insulation Diameter (In.): 0.14
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Maximum Wire Insulation Diameter (In.): 0.14
• Maximum Wire Insulation Diameter (mm): 3.5
• Overall Height (In.): 0.03
• Overall Height (mm): 0.8
• Overall Length (mm): 22.9
• Overall Length (In.): 0.9
• Overall Thickness (mm): 0.8
• Overall Thickness (In.): 0.03
• Overall Width (In.): 0.25
• Overall Width (mm): 6.4
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Loose Piece Disconnect
• For Use With: CT-100, CT-1550, CT-1551, CT-160, CT-260
• Maximum Voltage (kV): 0.6

Packaging Details

• UPC: 07498382712
• GTIN Package: 00074983827121
• Standard Package Volume Ft3: 0.0063
• Standard Package Weight Pounds: 0.2800
• Std Package Height In: 1.8
• Std Package Height MM: 45.72
• Std Package Length In: 3.65
• Std Package Length MM: 92.71
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983827126
• Standard Carton Volume Ft3: 0.0063
• Standard Carton Weight Pounds: 2.8000
• Std Carton Height In: 3.7
• Std Carton Height MM: 93.98
• Std Carton Length In: 9.3
• Std Carton Length MM: 92.71
• Std Carton Width In: 3.95
• Std Carton Width MM: 100.33
• Std Ctn Qty: 1000
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983827121
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
