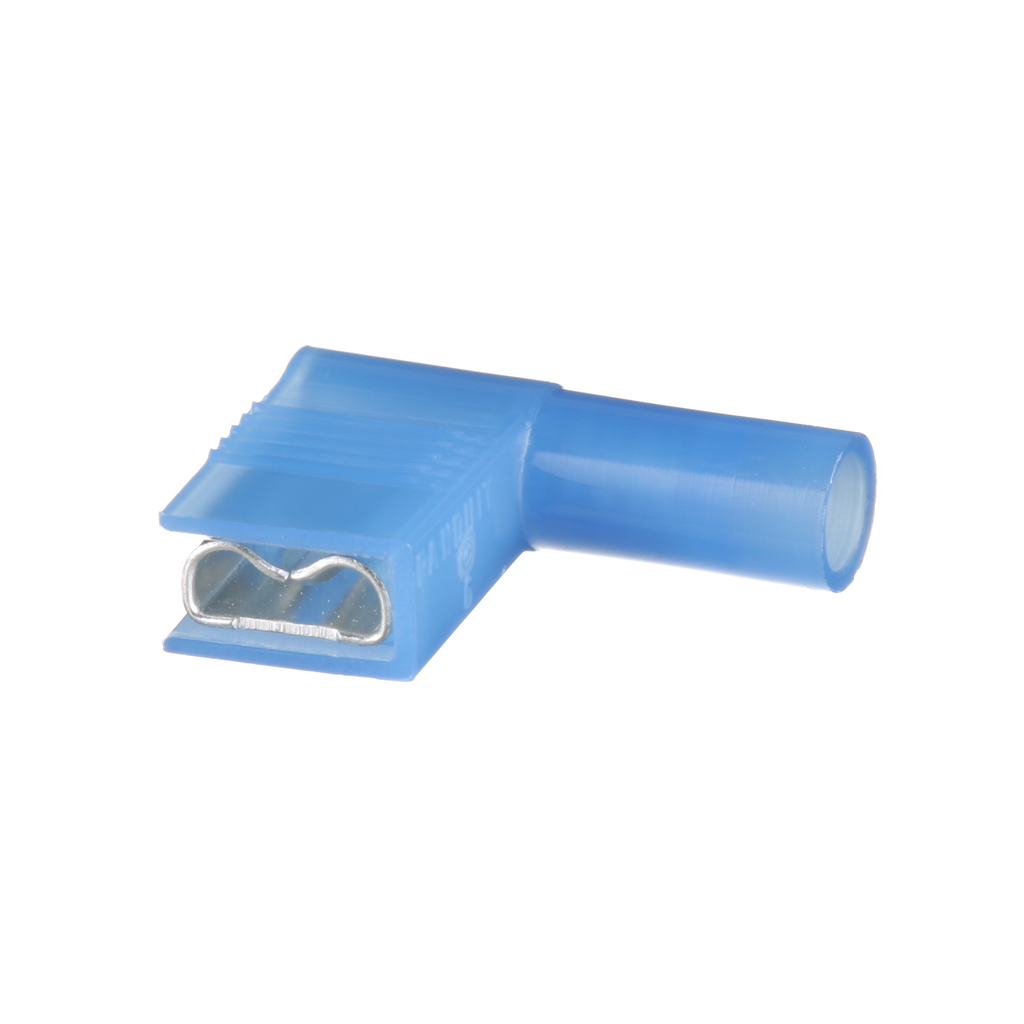

Panduit DNFR14-250B-L Nylon Insulated Right Angle Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$119.68/c (100 ea)
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNFR14-250B-L
North Coast Part # 543576

Specifications

  • Product Segment: IEI
  • Note: DNFR14-250B-L replaces DNFR14-250B-C
  • Disconnect Type: Female Disconnect-Right Angle
  • Insulation Material: Nylon
  • Minimum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Wire Size (AWG): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.25
  • Tab Size (mm): 6.3
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tinned
  • Base Material: Brass
  • Color Code: Blue
  • Barrel Type: Butted Seam
  • Flammability Rating: HB
  • Insulation Diameter (In.): 0.16
  • Insulation Diameter (mm): 4
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.13
  • Maximum Wire Insulation Diameter (mm): 3.3
  • Overall Depth (In.): 0.63
  • Overall Depth (mm): 16
  • Overall Height (In.): 0.2
  • Overall Height (mm): 5.1
  • Overall Length (In.): 0.78
  • Overall Length (mm): 19.8
  • Overall Thickness (mm): 0.5
  • Overall Thickness (In.): 0.18
  • Overall Width (In.): 0.36
  • Overall Width (mm): 9.1
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1525
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498312457
  • GTIN Package: 00074983124572
  • Standard Package Volume Ft3: 0.0096
  • Standard Package Weight Pounds: 0.2050
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983124577
  • Standard Carton Volume Ft3: 0.0096
  • Standard Carton Weight Pounds: 2.0500
  • Std Carton Height In: 4.35
  • Std Carton Height MM: 110.49
  • Std Carton Length In: 9.9
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 4.1
  • Std Carton Width MM: 104.14
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983124572
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498312457
GTiN 00074983124572
Finish Tinned
Width 0.36 in
Color Blue
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Depth 0.63 in
Height 0.2 in
Country of Origin MX
Wire Size 14
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.78 in
Color Coding Blue
Sub Brand Pan-Term
Voltage null
