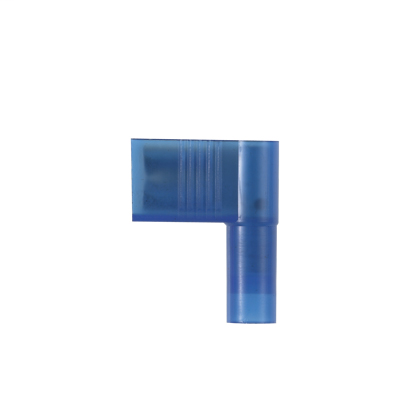

Panduit DNFR14-250B-M Nylon Insulated Right Angle Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$553.07/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNFR14-250B-M
North Coast Part # 601273

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect-Right Angle
  • Insulation Material: Nylon-Fully Insulated
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Wire Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Tab Size (mm): 6.3
  • Tab Size (In.): 0.25
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Base Material: Brass
  • Finish/Coating: Tinned
  • Color Code: Blue
  • Barrel Type: Butted Seam
  • Flammability Rating: HB
  • Insulation Diameter (mm): 4
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.13
  • Maximum Wire Insulation Diameter (mm): 3.3
  • Overall Depth (In.): 0.6
  • Overall Depth (mm): 15.2
  • Overall Height (mm): 15.2
  • Overall Height (In.): 0.6
  • Overall Length (In.): 0.58
  • Overall Length (mm): 14.7
  • Overall Width (In.): 0.37
  • Overall Width (mm): 9.4
  • Sub Brand: Pan-Term
  • Packaging Type: Bag
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-300-1
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382662
  • GTIN Package: 00074983826629
  • Standard Package Volume Ft3: 0.7483
  • Standard Package Weight Pounds: 3.8000
  • Std Package Height In: 4.35
  • Std Package Height MM: 110.49
  • Std Package Length In: 9.1
  • Std Package Length MM: 231.14
  • Std Package Width In: 4.4
  • Std Package Width MM: 111.76
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.7483
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 231.14
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826629
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498382662
GTiN 00074983826629
Finish Tinned
Width 0.37 in
Color Blue
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Depth 0.6 in
Height 0.6 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.58 in
Color Coding Blue
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
