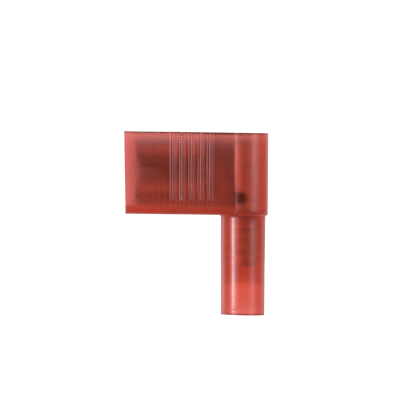

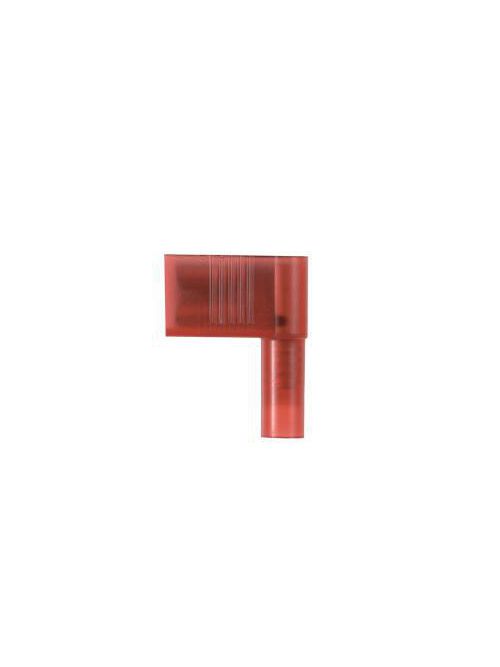

PAN DNFR18-250B-M Panduit DNFR18-25
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$496.66/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNFR18-250B-M
North Coast Part # 601277

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect-Right Angle
  • Insulation Material: Nylon
  • Minimum Wire Size (AWG): #22
  • Maximum Wire Size (AWG): #18
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 9/32
  • Tab Size (mm): 6.3 x 0.8
  • Tab Size (In.): 0.250 x 0.032
  • Standards Met: UL 310, CSA 22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Brass
  • Color Code: Red
  • Barrel Type: Funnel
  • Flammability Rating: UL94-HB
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Sub Brand: Pan-Term®
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1
  • Maximum Wire Insulation Diameter (In.): 0.13
  • Maximum Wire Insulation Diameter (mm): 3.3
  • Overall Height (mm): 5.1
  • Overall Height (In.): 0.2
  • Overall Length (mm): 15.7
  • Overall Length (In.): 0.62
  • Overall Width (mm): 19.8
  • Overall Width (In.): 0.78
  • Tongue Angle: Right Angle
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-1525
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382659
  • GTIN Package: 00074983826599
  • Standard Package Volume Ft3: 0.7483
  • Standard Package Weight Pounds: 3.6000
  • Std Package Height In: 4.4
  • Std Package Height MM: 111.76
  • Std Package Length In: 9.1
  • Std Package Length MM: 231.14
  • Std Package Width In: 4.35
  • Std Package Width MM: 110.49
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.7483
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 231.14
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826599
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498382659
Item Long Description The DNFR18-250B-M Pan-Term Disconnect is a nylon insulated, right angle, female disconnect with a funnel entry. The right angle design allows for use in limited space applications. The longer barrel design ensures compatibility with Panduit standard disconnect crimping tools.
GTiN 00074983826599
Finish Tinned
Width 0.36 in
Color Red
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Depth 0.62 in
Height 0.2 in
Country of Origin MX
Wire Size 18
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.78 in
Color Coding Red
Sub Brand Pan-Term
Voltage 600 Volt
