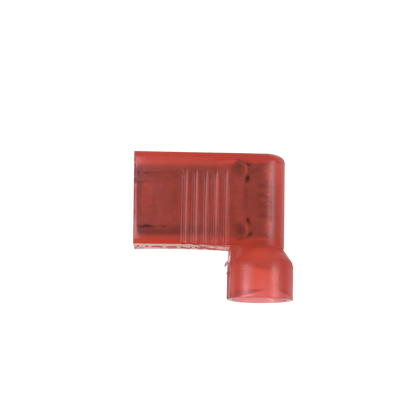

PAN DNFR18-250FIB-M Panduit DNFR18-
$581.93/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DNFR18-250FIB-M
North Coast Part # 1679536

Specifications

  • Product Segment: IEI
  • Disconnect Type: Female Disconnect-Right Angle
  • Maximum Wire Size (AWG): #18
  • Maximum Copper Conductor Size (AWG): #18
  • Minimum Wire Size (AWG): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (mm): 6.3
  • Tab Size (In.): 0.25
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tinned
  • Base Material: Brass
  • Color Code: Red
  • Flammability Rating: HB
  • Insulation Diameter (In.): 0.18
  • Insulation Diameter (mm): 4.6
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 4.5
  • Maximum Wire Insulation Diameter (In.): 0.18
  • Overall Depth (mm): 15.2
  • Overall Depth (In.): 0.6
  • Overall Height (mm): 15.2
  • Overall Height (In.): 0.6
  • Overall Length (mm): 14.7
  • Overall Length (In.): 0.58
  • Overall Width (mm): 9.4
  • Overall Width (In.): 0.37
  • Seam Type: Butted
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For use with: CT-300-1
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382613
  • GTIN Package: 00074983826131
  • Standard Package Volume Ft3: 0.7402
  • Standard Package Weight Pounds: 3.3000
  • Std Package Height In: 4.55
  • Std Package Height MM: 115.57
  • Std Package Length In: 9.15
  • Std Package Length MM: 232.41
  • Std Package Width In: 4.45
  • Std Package Width MM: 113.03
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.7402
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 232.41
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983826131
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498382613
GTiN 00074983826131
Finish Tinned
Width 0.37 in
Color Red
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Depth 0.6 in
Height 0.6 in
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.58 in
Color Coding Red
Sub Brand Pan-Term
Voltage null
