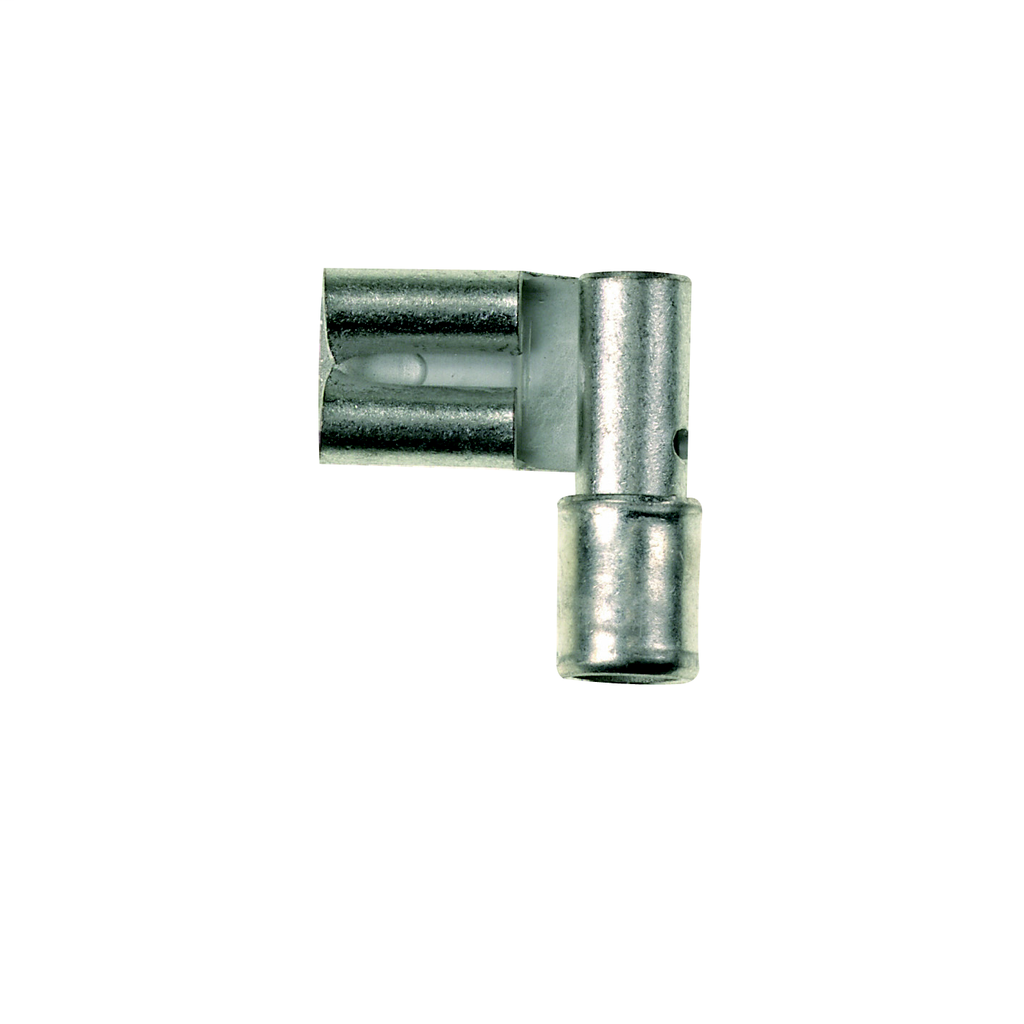

PAN DR14-205-C Disc,F,RA,NIns,.205x
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$95.59/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DR14-205-C
North Coast Part # 675023

Specifications

  • Sub Brand: Type DR
  • Width (mm): 6.4
  • Height (In.): 0.12
  • Height (mm): 3.0
  • Base Material: Brass
  • Length (In.): 0.54
  • Packaging Type: Bottle
  • Depth (mm): 14.0
  • Wire Range: 16 - 14 AWG
  • Depth (In.): 0.55
  • Flammability Rating: —
  • Order Multiple Quantity Each: 1
  • Width In (mm): 0.25 (6.4)
  • Length (mm): 13.7
  • Brand Name: Panduit
  • Width (In.): 0.25
  • Order Min Qty Each: 1
  • Style: Female Disconnect
  • Tool: CT-100A, CT-200, CT-600-A, CT-1570, CT-2500
  • Type: Sleeved Barrel
  • Length In (mm): 0.54 (13.7)

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

Packaging Details

  • UNSPSC Carton Description: CARTON
  • Std Package Height: 1.3
  • GTIN Carton: 50074983827379
  • Std Carton Width: 4.3
  • UNSPSC Package Description: PACKAGE
  • Std Carton Height: 4.1
  • UNSPSC Package UOM: PK
  • Std Package Height MM: 33.02
  • Sell Pack Packaging Description: BTL
  • Std Carton Height MM: 104.14
  • Std Package Width MM: 50.8
  • UNSPSC Piece Desription: EACH
  • UNSPSC Piece UOM: EA
  • Std Package Width: 2
  • Std Carton Length: 6.7
  • UNSPSC Carton UOM: CT
  • Sell Pkg Qty 1: 1
  • Std Package Length: 4.1
  • Ship Pack Packaging Description: BTL
  • GTIN Package: 00074983827374
  • Std Carton Length MM: 170.18
  • Std Package Length MM: 104.14
  • Std Carton Width MM: 109.22
  • Part Number Full UPC: 7498382737
  • Minimum Order Quantity: 100
  • Standard Package Quantity: 100
  • Stanard Carton Quantity: 1000
  • Standard Package Weight: 0.34499999999999997
  • Standard Carton Weight: 3.45

Certifications & Approvals

  • ECCN Commodity Code: EAR99
  • CSA Certified: C22.2 No.153
  • ARRA Compliant: Y
  • CE Compliant: No
  • CE Marking: No
  • RoHS Compliancy Status: Compliant
  • UL Listed: Yes
  • Standards: UL 310 Listed
  • Buy American Compliant: Y
  • Ozone Depleting Compounds: N
  • MSDS Indicator: N

Additional Specifications

  • Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
  • Hazardous Material Flag: N
  • NMFC Rate: 70
  • Master Pack Packaging Description: PKG
  • Wire Strip Length In. (mm): 9/32" (.2812) (7.1)
  • Part Number Series: DR
  • Gross Volume UOM: CU
  • Barrel Type: Sleeved Barrel
  • CA9 Series Crimp Die: —
  • Wire Range In. (mm²): 16 - 14 AWG (1.5 - 2.5)
  • Wire Range (mm²): 1.5 - 2.5
  • Insulation: Non-Insulated
  • Max. Insulation Diameter In. (mm): —
  • Tab Size (In.): 0.205/0.187 x 0.032
  • Country of Origin Description: Mexico
  • Barrel Configuration: Standard
  • Pieces Per Reel: —
  • Product Group Assignment: Terminals
  • Panduit Color Code: Metallic
  • Unit Volume: .000068
  • Tab Size (mm): 5.2/4.7 x 0.8
  • Plating Type: Tinned
  • Country of Origin 2Digit: MX
  • Lowest Level UOM: EA
  • Master Pack Quantity: 10
  • CA-800/EZ Series Crimp Die: —
  • UNSPSC: 39121409
  • Model (Design): Sleeve
  • Tab Size In. (mm): 0.205/0.187 x 0.032 (5.2/4.8 x 0.8)
  • Max. Voltage Rating: 600V
  • Unit Weight: .00345
  • UOM EA Pk: PK

Overview

UPC 07498382737
Item Long Description Female Disconnect, right angle, non-insulated, sleeved barrel, 16 14 AWG, .205 x .032 tab size.
GTiN 00074983827374
Length .54 in
Finish Tinned
Width 1/4 in
Type Loose Piece Disconnect
Barrel Type Sleeved Barrel
Insulation Type Non-Insulated
Material Brass
Depth .55 in
Height .12 in
Country of Origin Mexico
Wire Size 16-14 AWG
Base Material Brass
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.54 in
Max Voltage 600 V
Color Coding Metallic
Sub Brand Pan-Term
Voltage 600 Volt
UNSPSC 39121409
Product Type Terminals
