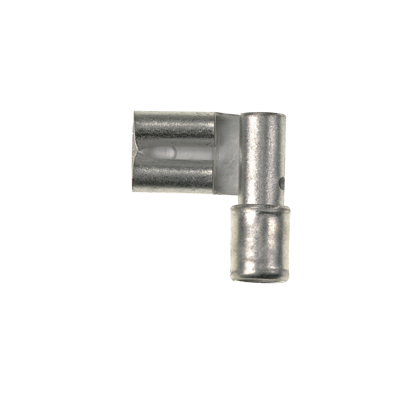

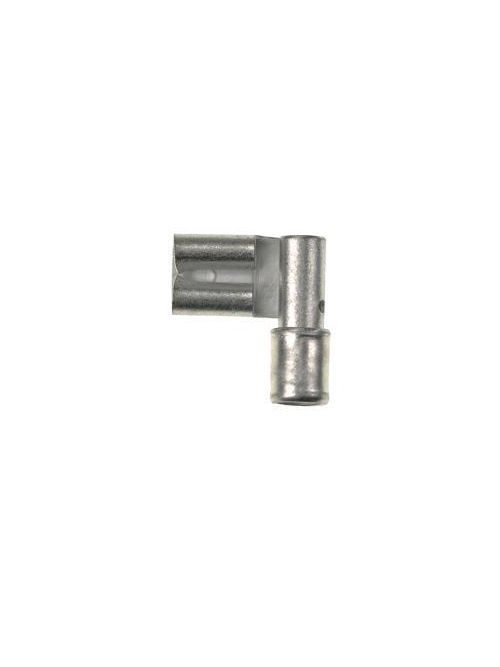

Panduit DR14-250-C Non-Insulated Right Angle Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$79.24/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DR14-250-C
North Coast Part # 601278

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Material: Non-Insulated
  • Minimum Wire Size (AWG): #16
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Tab Size (In.): 0.25
  • Tab Size (mm): 6.3
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Base Material: Brass
  • Finish/Coating: Tinned
  • Color Code: Metallic
  • Barrel Type: Sleeved Barrel
  • Flammability Rating: NA
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Overall Depth (In.): 0.55
  • Overall Depth (mm): 14
  • Overall Height (In.): 0.61
  • Overall Height (mm): 15
  • Overall Length (mm): 14.5
  • Overall Length (In.): 0.57
  • Overall Thickness (mm): 0.5
  • Overall Thickness (In.): 0.18
  • Overall Width (In.): 0.3
  • Overall Width (mm): 7.6
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-100, CT-200, CT-570, CT-1570
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382741
  • GTIN Package: 00074983827411
  • Standard Package Volume Ft3: 0.0063
  • Standard Package Weight Pounds: 0.3700
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983827416
  • Standard Carton Volume Ft3: 0.0063
  • Standard Carton Weight Pounds: 3.7000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.45
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.15
  • Std Carton Width MM: 105.41
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983827411
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498382741
Item Long Description The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.25 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.
GTiN 00074983827411
Finish Tinned
Width 0.3 in
Type Loose Piece Disconnect
Barrel Type Sleeved Barrel
Material Brass
Depth 0.55 in
Height 0.61 in
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.57 in
Color Coding Metallic
Sub Brand Pan-Term
Voltage 600 Volt
UNSPSC 39121409
