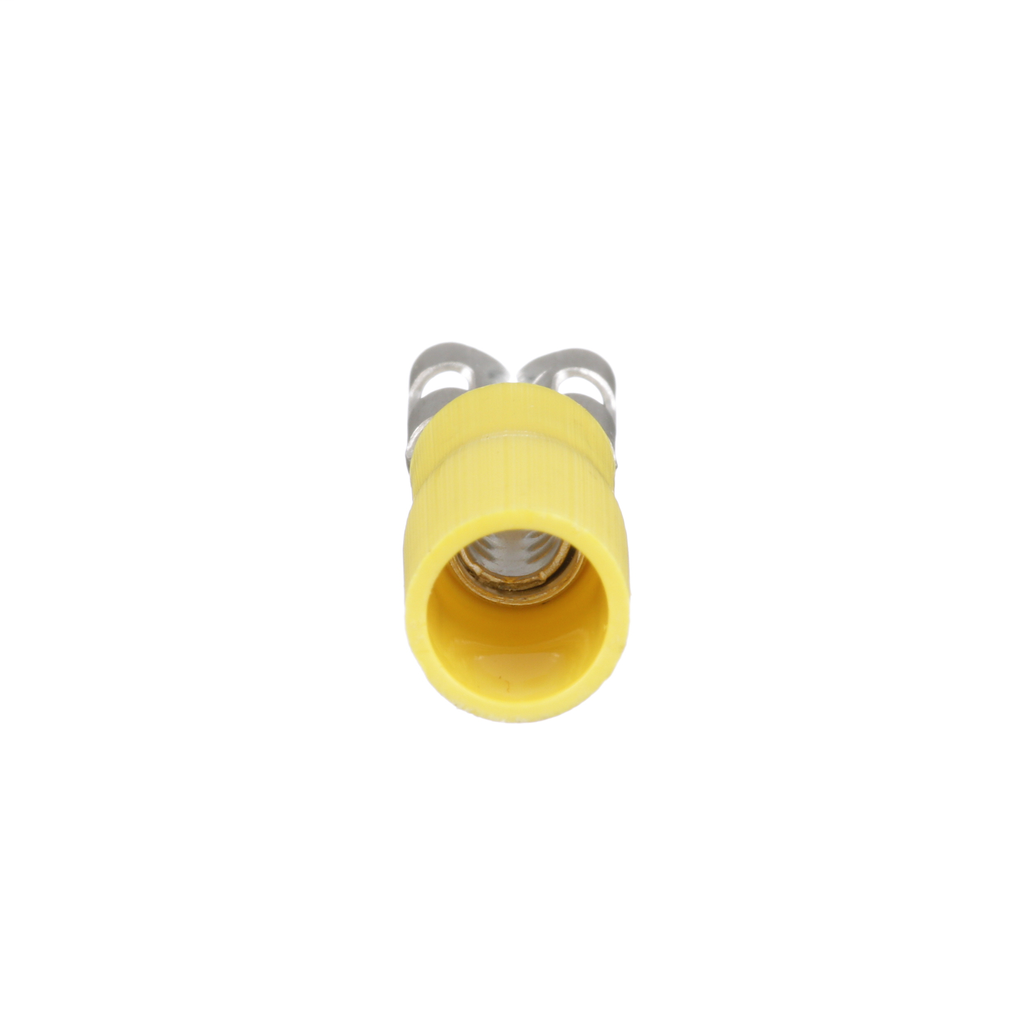

Panduit DV10-250-D Vinyl Barrel Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$543.48/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DV10-250-D
North Coast Part # 604708

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Disconnect Type: Female Disconnect
  • Insulation Material: Vinyl - Barrel Insulated
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Minimum Copper Conductor Size (AWG): #12
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.25
  • Tab Size (mm): 6.3
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tinned
  • Base Material: Brass
  • Color Code: Yellow
  • Barrel Type: Sleeved Barrel
  • Flammability Rating: V0
  • Insulation Diameter (mm): 5.8
  • Insulation Diameter (In.): 0.23
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Overall Height (mm): 3.3
  • Overall Height (In.): 0.13
  • Overall Length (mm): 26.2
  • Overall Length (In.): 1.03
  • Overall Width (In.): 0.3
  • Overall Width (mm): 7.6
  • Sub Brand: Pan-Term
  • Packaging Type: Box
  • Product Type: Loose Piece Disconnect
  • For Use With: CT-550, CT-1551, CT-1550, CT-100, CT-160, CT-260, CT-460
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498382105
  • GTIN Package: 00074983821051
  • Standard Package Volume Ft3: 0.0941
  • Standard Package Weight Pounds: 2.0500
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.45
  • Std Package Width MM: 113.03
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.0941
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983821051
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498382105
GTiN 00074983821051
Finish Tinned
Width 0.3 in
Color Yellow
Type Loose Piece Disconnect
Barrel Type Sleeved Barrel
Material Brass
Height 0.13 in
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 302 degrees F
Overall Length 1.03 in
Color Coding Yellow
Sub Brand Pan-Term
Voltage null
