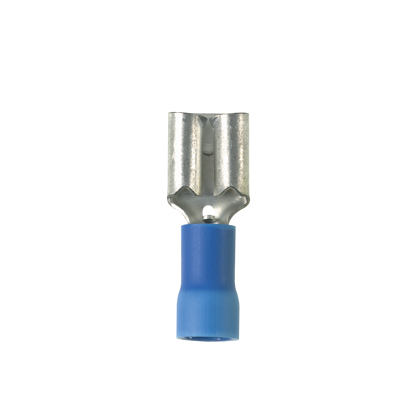

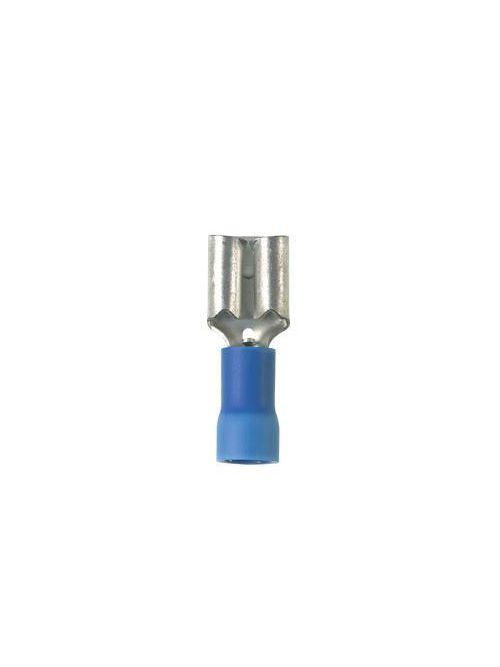

PAN DV14-187B-C Disc,F,BlVn,.187x.0
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$85.52/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # DV14-187B-C
North Coast Part # 218352

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Disconnect Type: Female Disconnect
  • Insulation Material: Vinyl - Barrel Insulated
  • Maximum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG): #16
  • Minimum Wire Size (AWG): #14
  • Minimum Copper Conductor Size (AWG): #14
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Tab Size (In.): 0.19
  • Tab Size (mm): 4.8
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
  • Maximum Voltage (V): 600
  • Finish/Coating: Tinned
  • Base Material: Brass
  • Color Code: Blue
  • Flammability Rating: V0
  • Insulation Diameter (In.): 0.17
  • Insulation Diameter (mm): 4.3
  • Sub Brand: Pan-Term
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Overall Height (mm): 2.5
  • Overall Height (In.): 0.1
  • Overall Length (In.): 0.75
  • Overall Length (mm): 19.1
  • Overall Width (In.): 0.23
  • Overall Width (mm): 5.8
  • Seam Type: Butted
  • Packaging Type: Bottle
  • Product Type: Loose Piece Disconnect
  • For Use With: CD-800-2 CD9-2A
  • Maximum Voltage (kV): 0.6

Packaging Details

  • UPC: 07498346015
  • GTIN Package: 00074983460151
  • Standard Package Volume Ft3: 0.0064
  • Standard Package Weight Pounds: 0.2100
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983460156
  • Standard Carton Volume Ft3: 0.0064
  • Standard Carton Weight Pounds: 1.0500
  • Std Carton Height In: 3.65
  • Std Carton Height MM: 92.71
  • Std Carton Length In: 9.3
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 2.2
  • Std Carton Width MM: 55.88
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983460151
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: Y
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498346015
Item Long Description The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.75" (19.1 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
GTiN 00074983460151
Finish Tinned
Width 0.23 in
Color Blue
Type Loose Piece Disconnect
Barrel Type Butted Seam
Material Brass
Height 0.1 in
Country of Origin MX
Wire Size 16
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.75 in
Color Coding Blue
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
UNSPSC 39121409
