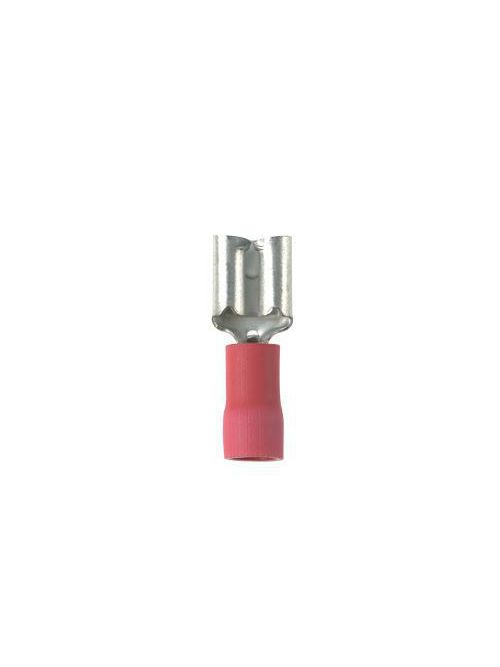

Panduit DVF18-250-CY Vinyl Barrel Insulated Female Disconnect

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Note: DVF18-250-CY replaces DVF18-250-C
• Disconnect Type: Female Disconnect
• Insulation Material: Vinyl - Barrel Insulated
• Minimum Wire Size (AWG): #22
• Maximum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG): #18
• Minimum Copper Conductor Size (AWG): #22
• Wire Strip Length (mm): 7.1
• Wire Strip Length (In.): 0.28
• Tab Size (In.): 0.25
• Tab Size (mm): 6.3
• Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
• Maximum Voltage (V): 300
• Base Material: Brass
• Finish/Coating: Tinned
• Color Code: Red
• Barrel Type: Grip Sleeve
• Flammability Rating: V0
• Insulation Diameter (mm): 3.5
• Insulation Diameter (In.): 0.14
• Maximum Operating Temperature (°F): 194
• Maximum Operating Temperature (°C): 90
• Sub Brand: Pan-Term
• Maximum Wire Insulation Diameter (mm): 3.5
• Maximum Wire Insulation Diameter (In.): 0.16
• Overall Height (In.): 0.12
• Overall Height (mm): 3
• Overall Length (In.): 0.81
• Overall Length (mm): 20.6
• Overall Thickness (mm): 0.4
• Overall Thickness (In.): 0.16
• Overall Width (In.): 0.29
• Overall Width (mm): 7.4
• Packaging Type: Bottle
• Product Type: Loose Piece Disconnect
• For Use With: CT-520, CT-1525
• Maximum Voltage (kV): 0.3

Packaging Details

• UPC: 07498368644
• GTIN Package: 00074983686445
• Standard Package Volume Ft3: 0.0064
• Standard Package Weight Pounds: 0.2700
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983686440
• Standard Carton Volume Ft3: 0.0064
• Standard Carton Weight Pounds: 1.3500
• Std Carton Height In: 3.7
• Std Carton Height MM: 93.98
• Std Carton Length In: 9.3
• Std Carton Length MM: 91.44
• Std Carton Width In: 2.35
• Std Carton Width MM: 59.69
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983686445
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
